免運鐵捲門開關應用Tuya涂鴉遠端開關系統 車庫遙控倉庫鐵捲門開停關系統
 手機無國界遠距Siri聲控工廠倉庫鐵卷門AI開關手機聲控鐵門
 免運車庫廠房倉庫鐵捲門開關 應用塗鴉tuya遠端遙控開停關開關系統
上停下 手機聲控無國界遠距Siri聲控鐵卷門AI開關
 Tuya鐵捲門開關

上停下、開停關  ▲ ∥ ▼

額定電流： 10A
 額定電壓： 100-240V
 環境溫度： -20- 60 殼體材質 阻燃PC ABS
開關尺寸： 120x72x 厚9mm
 類    型： 智能開關
 重    量： 155gm
 接線類型：螺絲式接線端子工作電壓：100~240VAC 50/60Hz
 最大電流：10A
 負載功率：≦1000W
 最大功率：2400W
 手機APP：Tuya無國界、無限遠 (只要有網路)

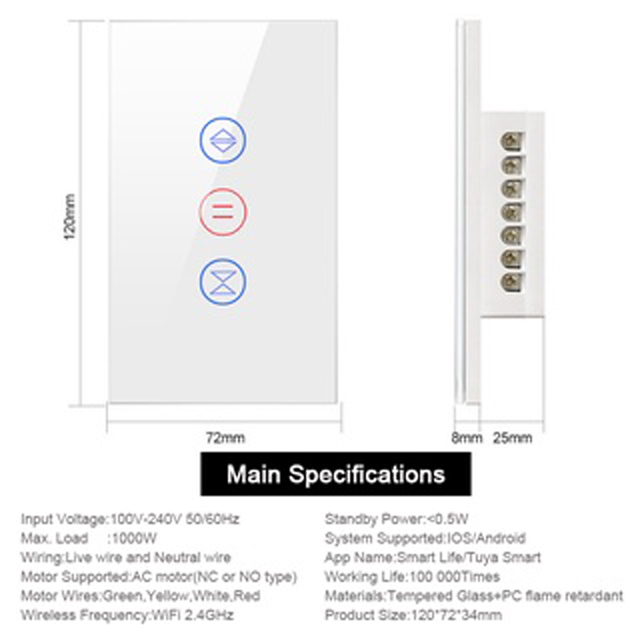

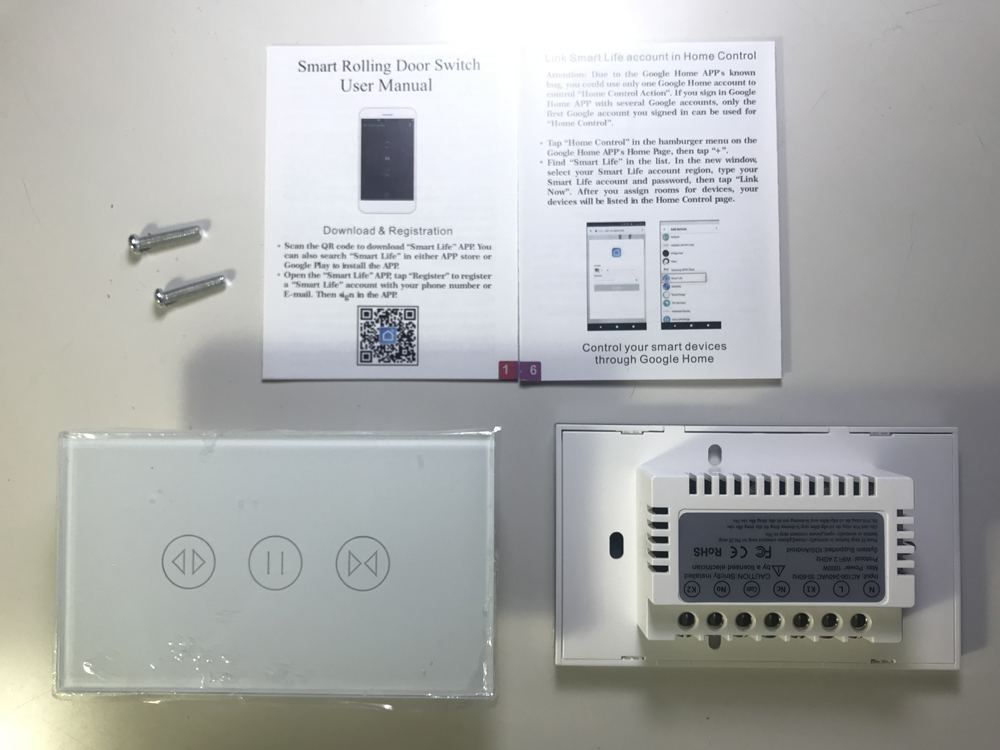

 面板尺寸：長120mm X 寬72mm X厚9mm
 接線機座(入開關盒)尺寸長71mm X 寬48mm X高25mm

1.硬體:電動鐵捲門 開停關、上停下安裝

tuya開關需在安裝附近另加拉接獨立(自需)100V~240V AC電源方能使用。
 二條台電交流電源線‚拉接鎖於tuya開關的中性(零)線N、火線L 二端子上。

 [中性(零)線N、火線L、直接拉附近110V或220V或電捲門馬達電源]，
分別接在最左邊的N零線端和火線L 再由左至右接：

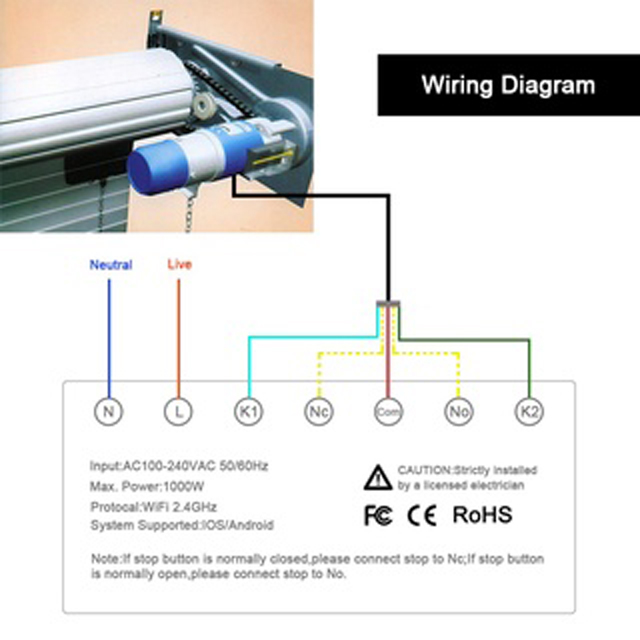

 中性(零)線N、火線L、往上線K1、停線Nc、共線Com、反停線No、往下線K2
安全起見，安裝全程請務必切關(拔掉)電源。
 請勿依線的顏色接線，必需依原開關功能動作(上線、下線、停線、共線com)
對照Tuya開關塑殼上標示的線端接線：
 中性(零)線N、火線L、往上線K1、停線Nc、共線Com、反停線No、往下線K2

將原有開關當作備份開關使用；宜採加接拉線，換線時每次請只單移一條線，
 換好後，才再移換另一條線，避免先全拆下後，新的開關接錯線。
 也可用三用電錶查出電源線和各線功能，
 公共線接 Com
 往上接 K1
 往下接 K2如果實際情況相反，就要對換一下。
Nc是接停止Stop (因機組的恆開或恆關設計No和Nc 如果實際情況相反，就要對換一下。)
YouTube搜尋「鐵捲門馬達開關」。
但當按停止Stop 反而是 開啟Open動作時，就必需將Stop停止線改接到No
K1、K2以及Nc、No如果實際情況相反，就要對換一下。
 暫停鍵Stop有兩種：Nc常閉型和No常開型，
 兩者根據電機類型選擇接線，如果不確定電機類型，可以都嘗試一下。

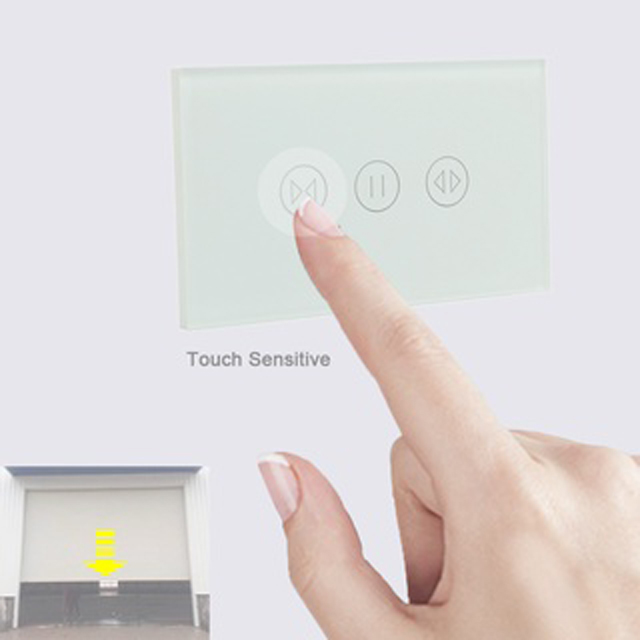

tuya開關觸控面板、可取代舊有的電動鐵捲門開停關、上停下3按鍵。

 長按tuya開關中間的[=]鍵5秒鐘，直至面板燈閃爍，
就已歸零(出廠值)，可重新重復配置。

鐵捲門馬達不能運轉，上停下開關斷線馬達不過電，用三用電錶檢查上、停、下和(壓扣)開關的Com共線
https://www.youtube.com/watch?v=Bvu1ZbGOy9g

鐵捲門用三用電錶查出上、停、下、共線，開關四(4)條線位置，查線時務必關電源(無電檢修)

https://www.youtube.com/watch?v=biXW1xnp-_k

2.軟體:下載APP塗鴉Tuya Smart
遠程手機聲控遠端開關系統
 手機遠端無國界遙控電動鐵捲門開停關、上停下3動作。
 無需佈線99%的電動鐵捲門都可用，手機下載tuya Smart選取控制系統內，
 要安裝此智能電動鐵捲門開關座的位址，點擊手機螢幕上座智能電動鐵捲門
 （開停關）或（上停下）鍵，即可通過手機實現Siri聲控、遠端控制和
 無國界定時控制開關鐵捲門。
Tuya涂鴉 Smart Life支援Apple Siri在有網路的環境
 可達無國界手機聲控、手控點按開關、照明、大家電、小家電、廚房電器、
 安防傳感、運動健康、視頻監控、網關中控、節能能源、教育娛樂、電視、
平板電腦….等。
Tuya涂鴉 Smart Life 同時支援Android 8與IOS 15.4
 超遠程手機聲控(台北公司控制高雄工廠和倉庫的鐵捲門開關) 或
(臺灣台北控制美國加州倉庫的鐵捲門開關)。
 各鐵捲門設置點，可自由簡短命名(方便Siri聲控辨識) 1支手機Wifi控制無限鐵捲門。

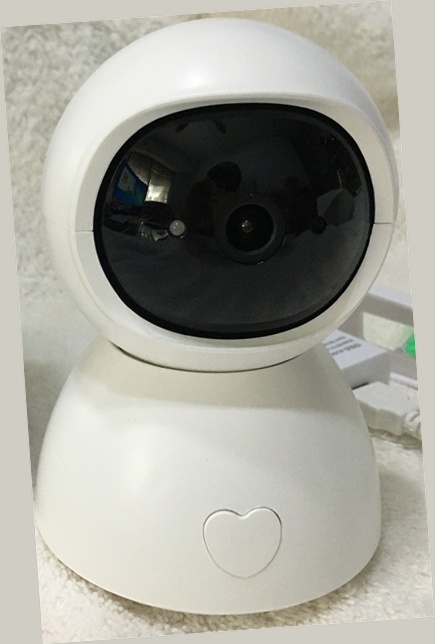

可增購下方聯結 tuya cameracamera涂鴉監視攝影機，同時監控視遙控結果

Tuya1 Tuya2

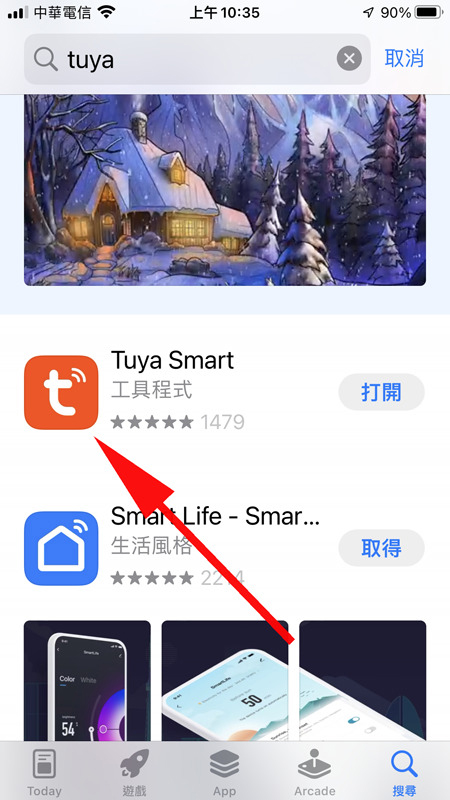

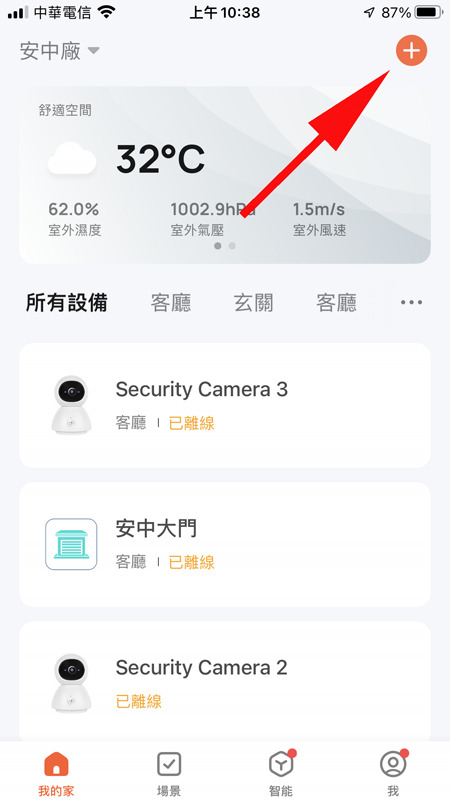

APP下載 Tuya Smart 點右上角+ 添加設備
Tuya3 Tuya4

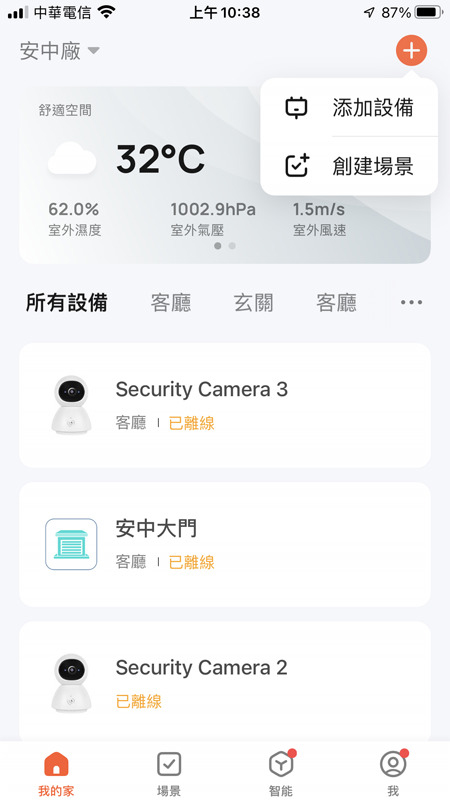

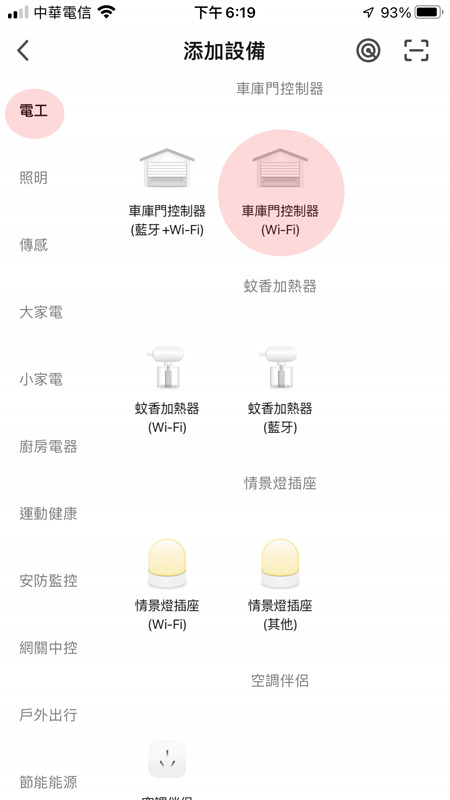

點右上角+ 再點添加設備 左邊選(電工)右邊選紅圈Wi-Fi

需要確認負載是否可用請先參照電器規格
功率(P)=V * I =110V * 10A =1100瓦(W)
 假如輸入AC110V最大負載電流10A x 110VAC =1100瓦(W)
 假如輸入AC220V最大負載電流10A x 220VAC =2200瓦(W)
 如果所需負載超過最大負荷≧60%，請加裝Magnetic Switch
 電磁開關(Magnetic Contactor電磁接觸器)作為負載端。

tuya添加裝置至增加家庭、加入家庭管理成員(手機)
https://www.youtube.com/watch?v=iiWSwwCGt_I

Siri喚醒tuya場景
https://www.youtube.com/watch?v=NRJdmAx3GaU

Tuya APP如何使用Siri功能How to use Siri function on Tuya App
https://www.youtube.com/watch?v=unc7b-dIZj0

用 Siri 直接喚醒涂鴉智能App上已設置好的自動化場景
https://v.qq.com/x/page/c0798fsprdm.html

Siri與Googlehome手機聲控家電 - 塗鴉TUYA跟易微聯eWelink的不同
https://www.youtube.com/watch?v=7fgKos2_9uQ


網上訂購
ONLINE ORDER www.taiwanwhite.com
https://www.taiwanwhite.com/product_1489619.html

TuyaDoor1 TuyaDoor2
TuyaDoor3 TuyaDoor4
TuyaDoor5  TuyaDoor6
TuyaDoor7  TuyaDoor8
TuyaDoor9  TuyaDoor10

Tuya remote switch system factory remote control warehouse rolling door switch
Mobile phone without borders long-distance Siri voice-activated
warehouse rolling door AI switch wifi mobile phone voice-activated warehouse
garage door Tuya remote switch system、garage、factory、warehouse、
remote control warehouse roll door switch on, off and stop.

Mobile phone voice control without borders long-distance Siri voice-activated

warehouse rolling door AI switch, wifi garage control roll door switch,
AI graffiti wifi mobile phone voice-activated remote switch

 Tuya Garage Roller Door Switch：Up and stop, open and close ▲ ∥ ▼
Rated current: 10A
Rated voltage: 100-240V
Ambient temperature: -20- 60
Shell material flame retardant PC ABS
Switch size: 120x72x thickness 9mm
Type: smart switch
Weight: 155gm
Wiring Type: Screw
Terminals Working Voltage: 100~240VAC 50/60Hz
Maximum current: 10A
Load power: ≦1000W
Maximum power: 2400W
Mobile APP: Tuya has no borders, infinite distance (as long as there is a network)
Panel size: length 120mm X width 72mm X thickness 9mm
Wiring base (into switch box) dimension length 71mm X width 48mm X height 25mm

Directly pull the 110V or 220V or electric rolling door motor power supply,
connect them to the leftmost N neutral wire terminal and the live wire L respectively,
and then connect them from left to right: Neutral line N, Live line L, Go up line K1,
Stop line Nc, Collinear line Com, Anti-stop line No, Go down line K2
For safety reasons, please be sure to turn off (unplug) the power supply during the
installation process.
Do not wire according to the color of the wire, it must operate according to the original
switch function (Online, Offline, Stop line, collinear line Com)
Contrast the wiring of the terminals marked on the plastic case of the Tuya switch:
Neutral line N, live line L, go up line K1, stop line Nc, collinear line Com,
anti-stop line No, go down line K2
Use the original switch as a backup switch; it is advisable to use additional connecting
wires, and when changing wires, please move only one wire at a time.
After the replacement is completed, the other line is moved to avoid the wrong connection
of the new switch after it is completely removed.
You can also use a multi meter to find out the power line and the function of each line.
YouTube search for "roller door motor switch installation".

Public line to Com、 Go up to K1、 Go down to K2.
If the actual situation is the opposite, it is necessary to exchange it.
Nc is connected to Stop (choose one of Nc and No) ,
But when you press Stop to start the Open action, you must change the Stop line to No.
K1、 K2 and Nc、No, if the actual situation is opposite, should be exchanged use.
There are two kinds of pause button Stop:
Nc：Normally Closed type and
No：Normally Open type, both choose the wiring according to the motor type,
if you are not sure about the motor type, you can try both.

Download Tuya, Smart Life remote mobile phone Siri voice-activated remote switch
system, the mobile phone automatically controls the electric iron rolling door to open,
close, and stop.
Chooses the Tuya control system 99% of electric garage rolling doors are available without wiring.
To install the address of this smart electric garage rolling door switch, click on the
smart electric garage rolling door on the phone screen (On/Off) or (Up/Stop) button,
you can realize Siri voice control, remote control and Control switch warehouse rolling
door without borders.
Tuya Graffiti Smart Life supports Apple Siri in a networked environment up to the
borderless mobile phone voice control, hand control click switch, lighting, major
appliances, small appliances, kitchen appliances, Security sensing, sports health, video
surveillance, gateway central control, energy saving, education and entertainment,
television, picture book reader...etc.
Tuya Smart Life supports both Android 8 and IOS 15.4 Ultra-long-range mobile phone
voice control (LA USA company controls the garage rolling door switch of Taiwan factory
and warehouse) or (NEW YORK, USA controls the switch of the warehouse rolling door
in the warehouse in California, USA).
Each garage rolling door setting point can be named freely (for Siri voice control)
The mobile phone can support 4G and Wifi, remote control WiFi wireless garage
rolling door switch.
To confirm whether the load is available, please refer to the electrical specifications；
Power (P) = V * I = 110V * 10A = 1100 watts (W) If the input AC110V maximum
Load current 10A x 110VAC = 1100 watts (W) If the input AC220V maximum
Load current 10A x 220VAC = 2200 watts (W) If the required load exceeds the
maximum load ≧60%, please install a Magnetic Switch The electromagnetic switch
 (Magnetic Contactor electromagnetic contactor) is used as the load end.
American electrical specifications socket plug voice control mobile phone control

 tuya door     tuya breaker    tuya plug    tuya cameracamera
