LED2015E
Autopure LED 超高亮汽車大燈 頭燈 完全取代高熱HID燈
LED
Autopure High Power Super LED Head Light for
revolution for the HID car head light
LED conversion kit headlight bulbs for cars trucks and SUVS
ETI Phillips Quality LED Bulbs LED HEADLIGHT BULB led headlight bulbs
|
|
|
H1
H3 H4 H7 H8 H9 H11 H13 H16 HB1 HB2 HB3 HB4 HB5 9003 9004 9005 9006 9007
ETINVC LED Car head light 6000K super WHITE clear light
TaiwanWhite®
2015款
無散熱風扇的LED汽車大燈燈泡
TaiwanWhite®台灣白®
H1
H3 H4 H7 H8 H9 H11 H13 H16
HB1 HB2 HB3 HB4 HB5 9003 9004 9005 9006
CREE
LED汽車大燈頭燈遠燈近燈車燈汽機車左右大燈6000K 比35W HID氙氣燈還亮
汽車LED大燈
20W 30W 魚眼霧燈、免安定器、免風扇 2014最新產品
2400Lm
3000Lm 和 3600Lm IP68防水 一年保固 H4 H7 H11 9005 9006 H1 H3
免安定器
免風扇
| 選購LED燈泡注意事項: |
| 1. LED燈泡的真實亮度流明Lm (流明値Lumen - 光通量) |
| 2. LED燈泡是否使用有廠牌之燈珠-發光晶片 |
| 3. 欲更換大燈燈泡之車款,年份和cc數 |
| 4. 所更換燈泡需不需要轉接固定座 |
| 5. 安裝後若故障燈亮起, 是否有解碼器和解決之道 |
| 6. 價格和產地 |
台灣白 網站購買時除告知所購產品外,
務必明示下列5項送貨資訊,
以便隨時追蹤, 運送進度:
1.收件者大名
2.收件者家宅室內電話,包括區碼 (也可以同手機號碼取代)
3.收件者手機號碼
4.收件者地址
5.收件者email
客服電話: 0910196666 Email:
mexa@taiwanwhite.com
www.taiwanwhite.com
 |
 |
 |
 |
 |
 |
 |
 |
光源：專業汽車級ETINVC晶片
工作電壓:
寬電壓12V 24V
DC
防護等級:
IP 68
可選顔色:
銀色
色溫:
4500K 6000K
外殼材質：6063航空鋁
散熱原理：紫銅，6063航空鋁面積散熱
光通量：3600Lm
工作壽命：≥30000小時
工作溫度：-40℃∼+80℃
流明值：120LM/W
重量：
0.55kg/套
H4遠/近大燈燈泡，CREE大功率晶片，免修改，就像更換燈泡一樣簡單，
直接換上(更換時可先拍照原裝置，後再依序裝換)。
HID終結者、URBAN爆亮族最愛，淘汰過時、高熱、不易安裝、不合法之HID。
不是高熱度HID氙氣燈，是省電高光低熱量的LED大燈。現無此項交通法規限制，
可安心的使用，再也不怕臨檢刁難、開單罰錢 。
超省電，約為市面35W
HID 1/3耗電量，一般鹵素燈泡的1/5的耗電量。
且比一般鹵素燈、HID的壽命更長。
舊產品帶風扇、電壓轉換器。零件越多，故障率也越多。
LED壽命約3萬多小時；但常常壞的都是周邊零件，如燈芯、電源、
散熱器、散熱風扇，風扇故障
LED車燈也跟著掛，
且常因溫度過高熔化、火燒整燈座。
美國CREE
XM-L2、ETINVC是單晶片發光效率高外，
低热阻：2.50
°C/W (越低代表散熱也越好)。
不需散熱風扇，徹底排除所有因風扇造成之不安定因素，
直接以6063網狀結構高熱輻射傳導性能，航空級铝散熱器散熱，
永久解決LED散熱問題。
美國CREE
XML2、ETINVC是可在85℃高溫下仍能正常運作的LED晶芯，
冷白（相關色溫5000
K – 8300 K）典型顯色指數爲65。
http://www.cree.com/LED-Components-and-Modules/Products/
即使到了100度高溫，也只有5%的光效率衰減 。
新推出2015的LED大燈，在一代的基礎上提升了很多，
不管是亮度，還是散熱效果，還有光型方面都提升了。使用三種金屬結合：
紫铜（導熱速度僅次於銀）、鍍銀（加快導熱速度）、6063航空級铝散熱器，
呈網狀結構，散熱最佳。散熱器展開來鋁的總面積約為一張A4紙的大小，靠面積散熱。
更進階使用專業汽車級ETINVC芯片（耐熱更達150℃）成為您車子大燈的主體，
享受名車級LED大燈的優越感。
想知道您愛車大燈燈泡規格請點下列連結:
http://www.sylvania.com/en-us/applications/automotive-lighting-systems/Pages/lrgmain.aspx
原廠一年保固(不包括人為損壞)
購買前請察明車燈座蓋是否有足夠空間安裝(燈座片至燈蓋距離最少需7公分)
不接受無法安裝等理由退換貨
開封安裝視同購買
 |
 |
| H4 30W 3000Lm Headlight Bulb Low Beam On DB-Benz | H4 30W 3000Lm Headlight Bulb High Beam On DB-Benz |
H1 H3 H7
H13 H16
H4/9003/HB2
9004/9007/HB1/HB5
9005/HB3/H10
9006/HB4
H8/H9/H11
|
|
|
|
|
|
H4
H11 9005 9006 Working Power：30W
Power 30W X 2 two bulbs 60W
Light Source: ETINVC LED
Operating Voltage: 6-70V DC
Waterproof Rate: IP68
Optional Color: Silver
Color Temperature: 4500K 6000K
Housing Material: Aviation Aluminum
Heat Dissipation: Wide Area Of Red Copper and Aviation Aluminum
Lumen: 3600Lm
Life Span: about 30000 hours
Operating Temperature: -40 - +80
Install Space: L70mm X W47mm
Lumen/W: 120Lm/W
Weight: 0.65Kgs/set
H4
9004 9007 Bi-beam far/near headlight bulbs,
ETINVC high power chip, free to modify, it is as simple as replacing light bulbs,
direct change (replacement:
took a photo of original device, after loading in order to change).
Not a HID Xenon lights,
power-saving LED headlights with high light low calorie.
Super power, electricity consumption about
1/3 one-third 35W HID and 1/5 one-fifth of
General halogen bulb power consumption.
And a longer lifespan than halogen lamps, HID.
No cooling fan design. Life time More than 30,000 hours ;
not more broken by
failure LED lights fan and the high temperature melting, burning the whole lamp,
Permanent settlement LED heat sink problem. .
ETINVC
LED chips special designed for automobile industry,
chips on board COB
High
temperature resistant ：2.50
°C/W 。
No cooling fan design equipped with 6063
Aerostatic
aluminum heat sink,
water proof IP68，Color
temperature 6500K, Power consumption about
1/3 HID and 1/5 general bulb.
http://www.cree.com/LED-Components-and-Modules/Products/
Even in 100-degree heat, and only 5% light attenuation efficiencies.
Launched the
2nd generation of the new LED headlights,
generation based on improved a lot,
whether it's brightness,
or a cooling
effect,
there are light-up.
Use a combination of three kinds of metal:
Copper (heat conduction rate second only to silver),
Silver (speed up conduction velocity),
6063 aerospace grade aluminum radiators to form a
meshed structure, best heat conduction.
Radiator heat sink aluminum total area about the size of an A4 sheet of
paper.
More advanced use of professional automotive ETINVC chips (heat resistant up to 150
°C)
become the subject of your car headlights, enjoy luxury car level LED headlamps of superiority.
Don't
know your Bulb size please go to :
http://www.sylvania.com/en-us/applications/automotive-lighting-systems/Pages/lrgmain.aspx
How to install H4 High/Low LED 30W 4500K /6000K on W124 1996 Mercedes Benz
Removed your HID kits/Stock bulbs
Insert new LED into your Headlight Housing and locked with spring clip
Connected your H4 LED wire to your stock socket
All connected you are good to go

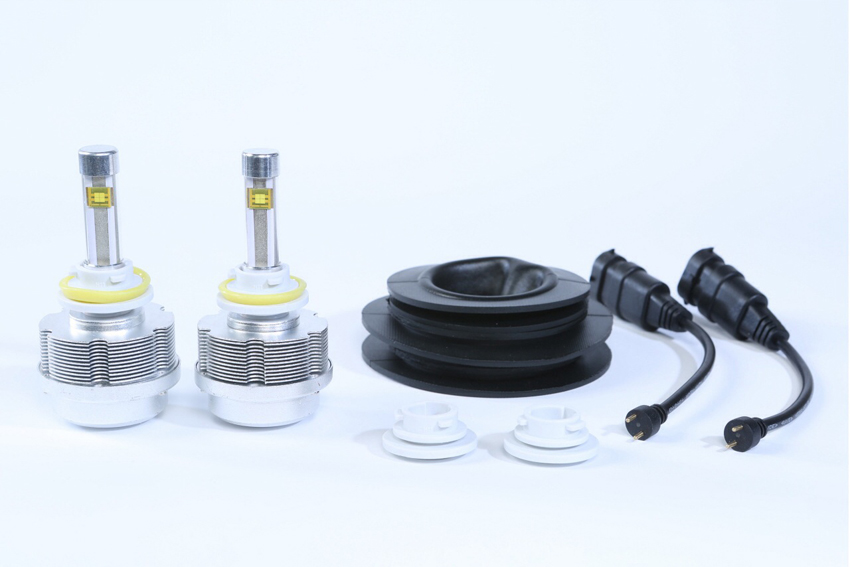

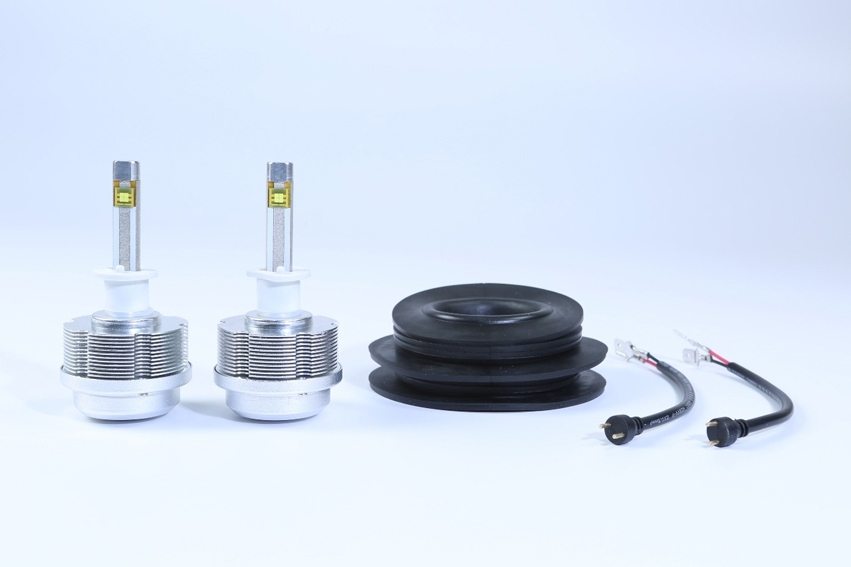

A set of 2 LED headlight bulbs box pack (30W x2)60W
| Item No. | Specification Dimension (mm) | Box PacKage | |||||
|
H4 9003 HS1 HB2 |
|
|
|||||
| H7 |
|
|
|||||
|
H11 H8 H9 H16 |
|
|
|||||
|
9005 H10 HB3 9006 |
|
|
|||||
| H1 |
|
|
|||||
| H3 |
|
|
|||||
| 9004 |
|
|
|||||
| 9007 |
|
|
問與答
無理不給良好評語·普通或極差者;將喪失產品保固權益.
| 諮詢專線 | 091019 6666 |
| 訂貨信箱 | autopure@ms3.hinet.net |
| 運費 | 郵局包裹 nn元- 宅急便nn元-貨運 nnn 元 |
| 7-11 全家取貨 | nn元 |
| 郵局貨到付款: 包裹nn+手續費nn | nnn元 |
| 宅急便貨到付款: 包裹nn+手續費nn | nnn元 |
| 匯款帳號 | 郵局
700 帳號: 000nnnnnn43300 |
Tel.02-23657700
Mr. 邱
e-mail: Mexa.Chiu@msa.hinet.net
