赤海龍1000℃高溫型滅火器
D類金屬自燃 D類金屬火災 D類金屬火災起火
Class D Metal Fire Extinguisher
AKAD 20P、AKAD 30P

Test fire performance
Proof with portable EN3 fire extinguishers, equipped witha class D fires applicator
Fire test object Magnesium acc. to annex NA of DIN EN 3-7 with 12 kg powder
Fire test object Sodium acc. to annex NA of DIN EN 3-7 with 12 kg powder
Fire test object Lithium (without specification) with 12 kg powder
Fire test object Calcium (without specification) with 9 kg powder
Fire test object Zinc (without specification) with 9 kg powder

Class D fire extinguishers put out combustible metal fires.
The best way to put out these fires is by suffocating and
eliminating the oxygen element.
The agent also helps absorb the heat from the fuel.
Class D fire extinguishers are dry powder fire extinguishers.
The powder agent used can be powdered graphite, granulated sodium chloride,
or a copper-based powder, all of which are effective in separating the fuel
(ignited combustible metal) from oxygen.
Class D fire extinguishers are specifically designed to put out fires
caused by burning metals.
These extinguishers work by using a dry powder extinguishing agent to
interrupt the chain reaction of combustion.

Class D Fire Extinguisher
contains a special blended Sodium Chloride-based dry powder extinguishing agent.
Heat from the fire causes it to
cake and form a crust excluding air and dissipating heat from burning metal.
Metal fires involving magnesium, sodium, potassium,
and sodium-potassium alloys can be successfully extinguished with this extinguisher. There is data showing that zirconium, uranium,
titanium, and powdered aluminum fires
can be controlled and extinguished with this unique extinguisher.

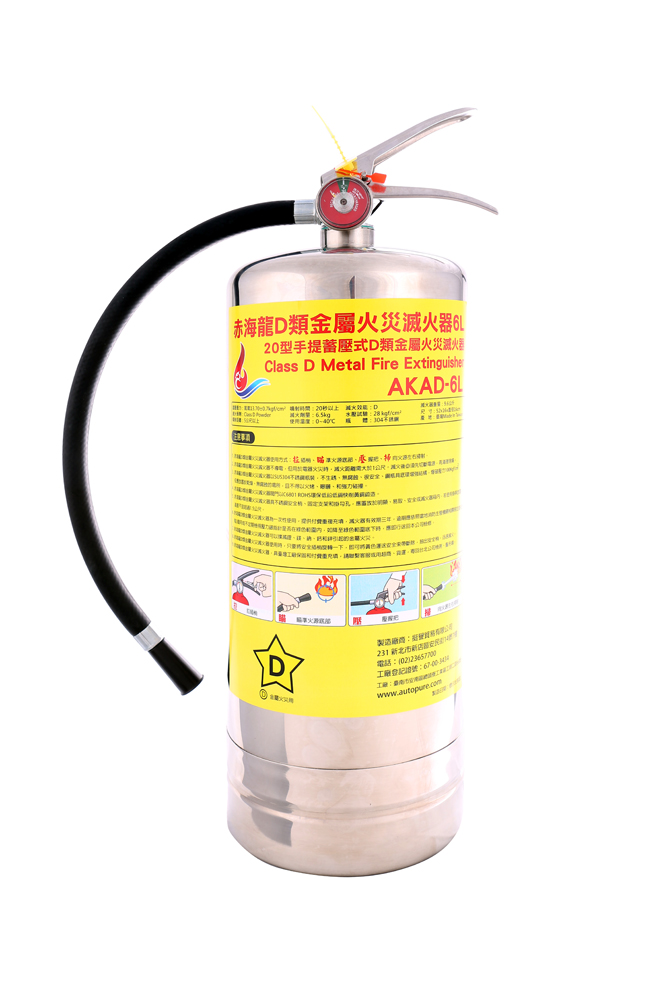

20P & 30P
Class D Metal Fire Extinguisher

Extinguisher Agent	Pressure	Fire Class	Capacity	Barrel	Weight Kgs	Range FT	Discharge Time	Item #
AKAD	1.50Mpa	D	6.5L	304L S.S.	6.20-6.50	3-6	15 to 20 sec	AKAD6L(20P)
AKAD	1.50Mpa	D	9L	304L S.S.	10.90-14.00	3-6	20 to 30 sec	AKAD9L(30P)

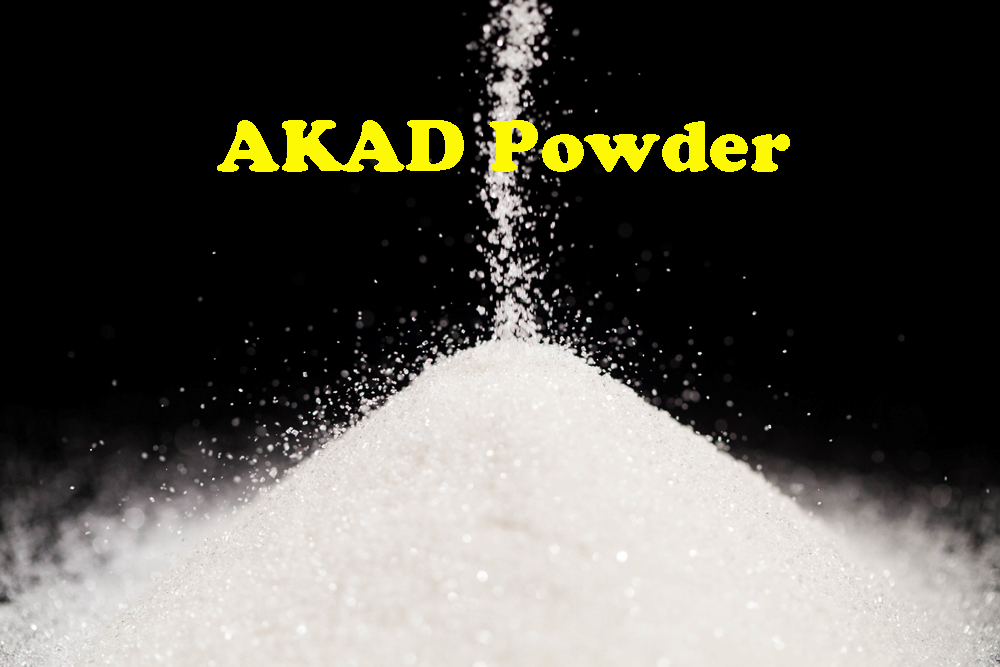

Dry powders for Class D fire extinguishers include: Sodium chloride (NaCl):
This salt-based powder is often used in Class D fire extinguishers for
lithium fires.
It helps absorb the heat of the fire and forms a bar barrier over the
burning material, preventing oxygen from reaching the burning material.
Graphite powder: Graphite powder is often used in high-temperature
applications, it absorbs heat and forms a non-reactive layer over
the metal flame, stopping the flame from spreading. Copper powder:
Copper powder can be effective in extinguishing fires involving certain metals,
such as lithium and magnesium.
When the dry powder covers the surface of the fire, it forms a protective
layer, isolating the burning material from oxygen, helping to suppress the fire.
The dry powder suffocates the flame, cutting off the oxygen supply,
thus preventing the combustion process from continuing.

AKAD AKAD6L AKAD9L

Brand AKA Halon AKA Halon

Extinguisher Type Portable Portable

Agent D Powder D Powder

Capacity 6.5L(20P) 9L(30P)

Accumulation Pressure 1.37Mpa 1.37Mpa

Cylinder Material 304L 304L

Cylinder Height 420±5mm 420±5mm

Cylinder Diameter 160mm 180mm

Approx. Dimensions 530x160cm 530x180cm

Cylinder Neck Thread M30x1.5 M30x1.5

Extinguishing Agent 6.5KG 10KG

Approx.
Gross Weight 9.6KG 14KG

Injection time ≧30 sec ≧40 sec

Spray Distance 1m 1m

Test Pressure 28 kgf/cm² 28 kgf/cm²

Operating Temperature -20~40℃ -20~40℃

Valve Material C6801 C6801

Safety Valve 19-26 bar 19-26 bar

Shelf Life 3 years 3 years

Production Date
Marked On The Bottom Of Cylinder
Marked On The Bottom Of Cylinder

20P 6000
Class D Fire Extinguisher AKAD 6000
Class D Metal Fire Extinguisher

Class Metal Fire Extinguisher AKAD 6000
Class D Fire Extinguisher
Brand: AKAD
Model: AKAD6000
Main ingredient: Class D Powder
Content: 20P
Dimensions: 20.87” x 6.3” (bottle height 53cm x bottle diameter 16cm)
Total weight: 19.85 lbs. (9.6 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧20 seconds
Test Pressure test: 28kgf/cm²
Using temperature: -20℃~40℃ suitable for winter use
Fire extinguishing efficiency: D
Shelf life: 3 years
Production date: marked on the bottom of the bottle

30P 9000gm
Class D Fire Extinguisher AKAD 9000 9L
Class D Metal Fire Extinguisher
AKAD9000

Class D Metal Fire Extinguisher AKAD 9000
Class D Fire Extinguisher
Brand: AKAD
Model: AKAD9000
Main ingredient: Class D Powder
Content: 30P
Dimensions: 20.87” x 7.10” (bottle height 53cm x bottle diameter 18cm)
Total weight: 30.87 lbs. (14 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧30 seconds
Test Pressure test: 28kgf/cm²
Using temperature: -20℃~40℃ suitable for winter use
Fire extinguishing efficiency: D
Shelf life: 3 years
Production date: marked on the bottom of the bottle

AKAD Class D Metal Fire Extinguisher
Sodium Chloride (NaCl), Graphite Powder, Copper Powder, Li-X
20P and 30P
