1) AKAli is a revolutionary new fire extinguisher that was developed over
 the past few years in response to the need for a product that can handle
high temperature lithium battery fires.
Application: Silicate is a natural mineral, a hydrated layered
aluminum-iron-magnesium silicate, with excellent properties such as heat
insulation, frost resistance, fire resistance, water absorption,
sound absorption, and non-conductivity.
At 800-1000℃, the instantaneous volume, it can rapidly increase 8 to 15
times, and up to 30 times.

2) AKAli lithium battery fire extinguisher is fireproof, non-combustible,
non-conductive, and has excellent thermal insulation properties.

3) AKAli is applied in the form of a water spray consisting of fine water
droplets containing vermiculite.
When AKAli is deposited on the surface of burning fuel, it absorbs the
high heat and expands, which can quickly cool the fire source and
suppress the flames, thereby controlling the fire.
 Lithium battery fires burn at very high temperatures,
often exceeding 1000°C.
 AKAli silicate water-based fire extinguishing agent, the water
contained in it will evaporate instantly due to high temperature, and the
vermiculite will absorb the high temperature and become loose and
fire-resistant expanded silicate, forming a high-temperature resistant
and fire-proof insulating firewall between the open flame and the
atmosphere.

4) AKAli, a lithium battery fire extinguisher, is used in the form of fine mist
 due to its property of absorbing high temperatures and expanding
instantly, it can immediately cool down lithium battery fires, and cover,
seal, isolate, and extinguish high-temperature flames.

5) AKAli Lithium Battery Fire Extinguisher will isolate and seal the
high-temperature burning fire source, preventing further heat conduction,
thereby controlling the fire and preventing it from re-igniting.

6) The extinguishing agent of AKAli lithium battery fire extinguisher is
different from that of general fire extinguisher.
Because the high temperature of lithium battery fire reaches 800~1000
degrees, the general fire extinguishing agent is completely ineffective and
burns out with smoke, but AKAli lithium battery the silicate particles
in the fire extinguisher will rapidly increase in volume by 8 to 15 times,
and up to 30 times, due to the high temperature of 800 to 1000 degrees.
Due to its natural physical properties, it instantly absorbs high
temperature and turns into expanded silicate with loose bubble
structure.
The vertical and horizontal structure of silicate ore forms a fire-proof,
heat-resistant and insulating expanded silicate firewall, covers and
seals the high-temperature area of the lithium battery fire to quickly
extinguish the lithium battery fire in the smallest effective fire
extinguishing area.
The vertical and horizontal structure of silicate ore forms a fire-proof
and heat-resistant expansive silicate fire wall.
 Effectively cools and suppresses fires, encapsulates and forms a
fireproof thermal barrier to prevent spread and re-ignition.


1000℃EXPANDED 8 TIMES
 High temperature expansion, Instant heat absorption,
Sponge structure, Sealed fire extinguishing

akali400

1P~50P
AkaLi 1L (900gm)
AE-A112004LI
 Refillable 304L Stainless Steel Bottled Total Weight 1.65Kgs
 Size  ：13.3” x 3.4” (H 33.80cm x Diameter 8.60cm)
 Capacity：1.88 lbs. (0.85-1.00Kgs.)
 Weight：3.36 lbs. (1.65-1.90Kgs.)
Extinguisher Agent Pressure Fire Class Capacity Barrel Weight Discharge Time Range Max. Item #
AKALI 2.8Mpa ABCDF 980ml 304L S.S. 1.70-1.90 Kgs 15 to 25 sec >3M AKALI900(3P)
AKALI 2.8Mpa ABCDF 700ml 304L S.S. 1.30-1.50 Kgs 10 to 15 sec >3M AKALI700(1P)

Silicate, is fired at 800 degrees.
It has many pores inside, good water retention and low heat conductivity,
which can help prevent the roots from being burned. It will naturally adjust the humidity
and retain fertilizer. It is the best, can improve acidic soil to neutral, and can also
reduce the chance of fertilizer damage. It has high porosity, is not easy to rot, and
can be used for three to five years.
Silicate, also known as silicate, is mostly produced in South Africa, Brazil, China,
and the United States.
It is fired at 800°C and is a light brown or white medium with uniform small particles.
It is a medium for hydroponics and soilless farming.
A very important role in.
It has many independent pores, and the surface can absorb
a large amount of water, while the internal pores provide vermiculite with the ability
to keep warm, making it both water-retaining and breathable.
It is almost sterile and very suitable for cutting propagation and sowing.
The pH value is almost neutral, and partially alkaline. It is light in weight, hard in
texture and not easy to break.
It will not deteriorate, be damaged or deformed within 3-5 years of use.
Use vermiculite to store dormant tubers and bulbous succulents, so that they can
dry inside during the dormant period, and it also has the effect of
maintaining a stable temperature.
Because it is almost sterile, it is also safe to use for sowing.
Silvery white silicate is a layered magnesium-containing hydroalumino silicate
 secondary metamorphic mineral.
The original ore looks like mica and is usually formed by hydrothermal alteration or
 weathering of black (gold) mica.
When it loses water and swells, it becomes curved and looks like a leech,
so it is called vermiculite.
Silvery white silicate has excellent properties such as heat insulation,
frost resistance, fire resistance, water absorption and sound absorption.
When calcined at 800-1000℃ for 0.5-1.0 minutes, its volume can rapidly increase
by 8-15 times, up to 30 times.
After expansion, the specific gravity is 50-200kg/m3, the color turns into silvery white,
 and loose expanded silicate is generated.
Silvery white expanded silicate is widely used in construction, metallurgy,
chemical industry, light industry, machinery, electricity, petroleum, and transportation.
It is mainly used in construction, insulation, filling, agriculture, gardening, etc.
abroad. Silvery white silicate is widely used in construction, metallurgy, chemical
 industry, light industry, machinery, electricity, petroleum, transportation and
other departments. Used in industrial production.
AKAli lithium battery fire extinguisher is environmentally friendly.
AKAli is a mixture of water and vermiculite, containing only these
two natural ingredients.
AKAli is environmentally friendly and non-toxic to humans, plants and animals.
AKAli is chemically inert and releases steam only at elevated temperatures,
making it not subject to REACH regulations.
AKAli does not contain any polyfluoroalkylated substances (does not contain
PFAS, PFOS, PFOA, lithium perfluorooctane sulfonate, and
perfluorooctane sulfonyl fluoride).
AKAli lithium battery fire extinguisher is currently applying for environmental
protection.


　

　

Chemical Structure
(Mg0.5,Ca0.5,Na,K)0.7(Mg,Fe,Al)3[(OH)2|(Al,Si)2Si2O10] · 4H2O



AKALI AKALI700 AKALI900 AKALI2L AKALI3L AKALI6L AKALI9L
Brand AKALI AKALI AKALI AKALI AKALI AKALI
Name Portable Portable Portable Portable Portable Portable
Major S-3-AB S-3-AB S-3-AB S-3-AB S-3-AB S-3-AB
Content 700g 900g 2L 3L 6L 9L
Pressure 1.37Mpa 1.37Mpa 1.37Mpa 1.37Mpa 1.37Mpa 1.37Mpa
Bottle 304L 304L 304L 304L 304L 304L
Size 30-7.6-7.6 33-8.6-8.6 43-15-11 45-13-13 53-16-16 53-18-18
Ex.Agent. 700g 900g 1.5KG 4.5KG 5.5KG 6.5KG
Weight 1.4KG 1KG 3KG 5KG 8KG 11KG
Discharge ≧15 Sec. ≧20 Sec. ≧25 Sec. ≧30 Sec. ≧40 Sec. ≧60 Sec.
Insufflation ≧3m ≧3m ≧5m ≧5m ≧5m ≧5m
WaterPressure 28 kgf/cm² 28 kgf/cm² 28 kgf/cm² 28 kgf/cm² 28 kgf/cm² 28 kgf/cm²
Tempeleture -20~40℃ -20~40℃ -20~40℃ -20~40℃ -20~40℃ -20~40℃
Conductive ≧40kV/mm ≧40kV/mm ≧40kV/mm ≧40kV/mm ≧40kV/mm ≧40kV/mm
Efficacy A1B10CDF A1B10CDF A1B20CDF A2B20CDF A2B30CDF A2B30CDF
Valid/Year 3 3 3 3 3 3
ProductionDate 250220 250220 250220 250220 250220 250220

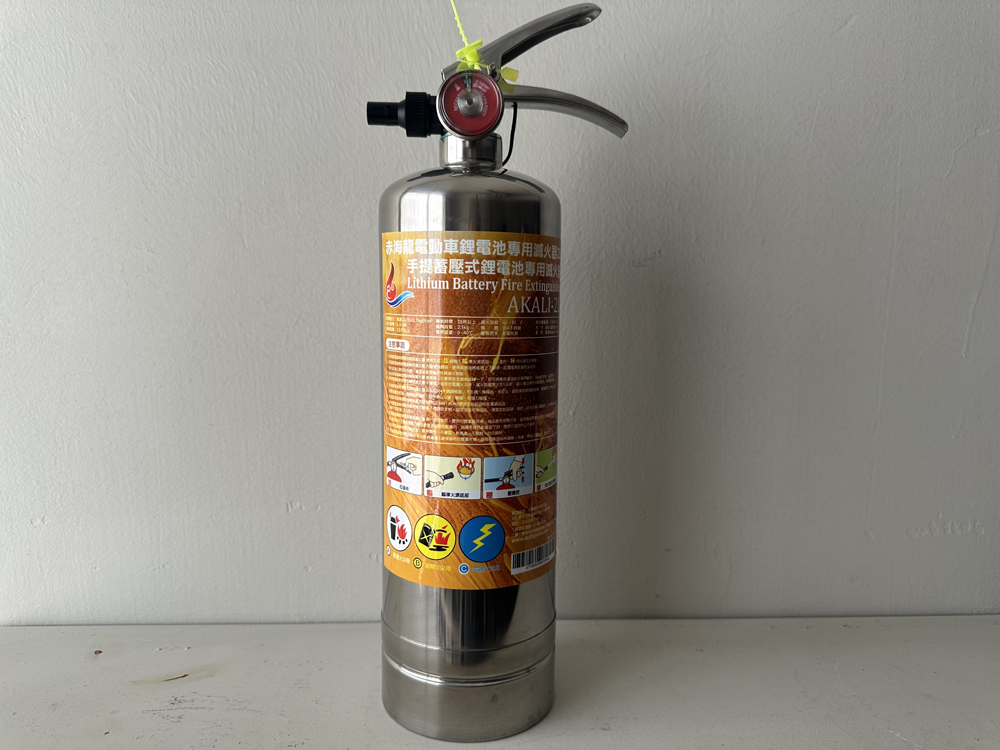

1P 700gm
 Fire Extinguisher AKALi 700
Best For EV Lithium Battery Fire Extinguisher Stainless Steel Bottle
 AKALi700

Lithium Battery, Solar Panel Fire Extinguisher AKALI 700
Lithium Battery, Solar Panel Fire Extinguisher
Brand: AKALI
Model: AKALI700
Main ingredient: S-AB-3
Content: 700gm
Type: Gel fire extinguisher
Dimensions: 11.81” x 3” (bottle height 30cm x bottle diameter 7.60cm)
Total weight: 3.09 lbs. (1.20-1.40 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧10 seconds
Spray distance: ≧3 meters
Water pressure test: 28kgf/cm²
Using temperature: -20℃~40℃ suitable for winter use
Dielectric strength: ≧36KV/mm
Fire extinguishing efficiency: A1, B2, C, D, F/K
Shelf life: 3 years
Production date: marked on the bottom of the bottle

3P 900gm
 Fire Extinguisher AKALi 900 1L
 Best For EV Lithium Battery Fire Extinguisher Stainless Steel Bottle
 AKALi900

Lithium Battery, Solar Panel Fire Extinguisher AKALI 900
Lithium Battery, Solar Panel Fire Extinguisher
Brand: AKALI
Model: AKALI900
Main ingredient: S-AB-3
Content: 1L
Type: Gel fire extinguisher
Dimensions: 13.3” x 3.4” (bottle height 33.80cm x bottle diameter 8.60cm)
Total weight: 3.36 lbs. (1.65-1.90 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧15 seconds
Spray distance: ≧3 meters
Water pressure test: 28kgf/cm²
Using temperature: -20℃~40℃ suitable for winter use
Dielectric strength: ≧36KV/mm
Fire extinguishing efficiency: A2, B4, C, D, F/K
Shelf life: 3 years
Production date: marked on the bottom of the bottle
AKA2L-1

5P 2000gm
 Fire Extinguisher AKALI 2000 2L
Best For EV Lithium Battery Fire Extinguisher Stainless Steel Bottle
 AKALi2000

Lithium Battery, Solar Panel Fire Extinguisher AKALI 2000
Lithium Battery, Solar Panel Fire Extinguisher
Brand: AKALI
Model: AKALI2000
Main ingredient: S-AB-3
Content: 2L
Type: Gel fire extinguisher
Dimensions: 16.93” x 5.91” (bottle height 43cm x bottle diameter 10.60cm)
Total weight: 5.21 lbs. (2.70-2.95 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧20 seconds
Spray distance: ≧3 meters
Water pressure test: 28kgf/cm²
Using temperature: -20℃~40℃ suitable for winter use
Dielectric strength: ≧36KV/mm
Fire extinguishing efficiency: A2, B4, C, D, F/K
Shelf life: 3 years
Production date: marked on the bottom of the bottle

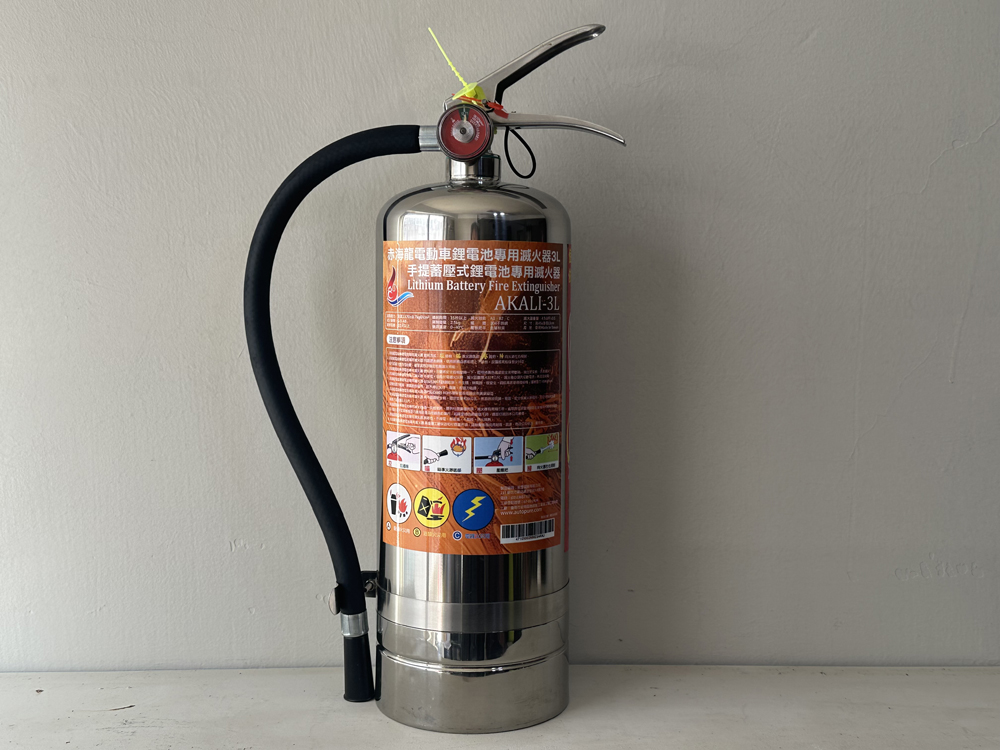

AKA3L-1

10P 3000gm
 Fire Extinguisher AKALI 3000 3L
Best For EV Lithium Battery Fire Extinguisher Stainless Steel Bottle
 AKALi3000

Lithium Battery, Solar Panel Fire Extinguisher AKALI 3000
Lithium Battery, Solar Panel Fire Extinguisher
Brand: AKALI
Model: AKALI3000
Main ingredient: S-AB-3
Content: 3L
Type: Gel fire extinguisher
Dimensions: 17.32” x 5.12” (bottle height 44cm x bottle diameter 13cm)
Total weight: 10 lbs. (4.85 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧20 seconds
Spray distance: ≧3 meters
Water pressure test: 28kgf/cm²
Using temperature: -20℃~40℃ suitable for winter use
Dielectric strength: ≧36KV/mm
Fire extinguishing efficiency: A3, B6, C, D, F/K
Shelf life: 3 years
Production date: marked on the bottom of the bottle

15P 4000gm
 Fire Extinguisher AKALI 4000 4L
Best For EV Lithium Battery Fire Extinguisher Stainless Steel Bottle
 AKALi4000

Lithium Battery, Solar Panel Fire Extinguisher AKALI 4000
Lithium Battery, Solar Panel Fire Extinguisher
Brand: AKALI
Model: AKALI4000
Main ingredient: S-AB-3
Content: 4L
Type: Gel fire extinguisher
Dimensions: 17.32” x 5.12” (bottle height 44cm x bottle diameter 13cm)
Total weight: 10 lbs. (4.85 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧20 seconds
Spray distance: ≧3 meters
Water pressure test: 28kgf/cm²
Using temperature: -20℃~40℃ suitable for winter use
Dielectric strength: ≧36KV/mm
Fire extinguishing efficiency: A3, B6, C, D, F/K
Shelf life: 3 years
Production date: marked on the bottom of the bottle

20P 6000gm

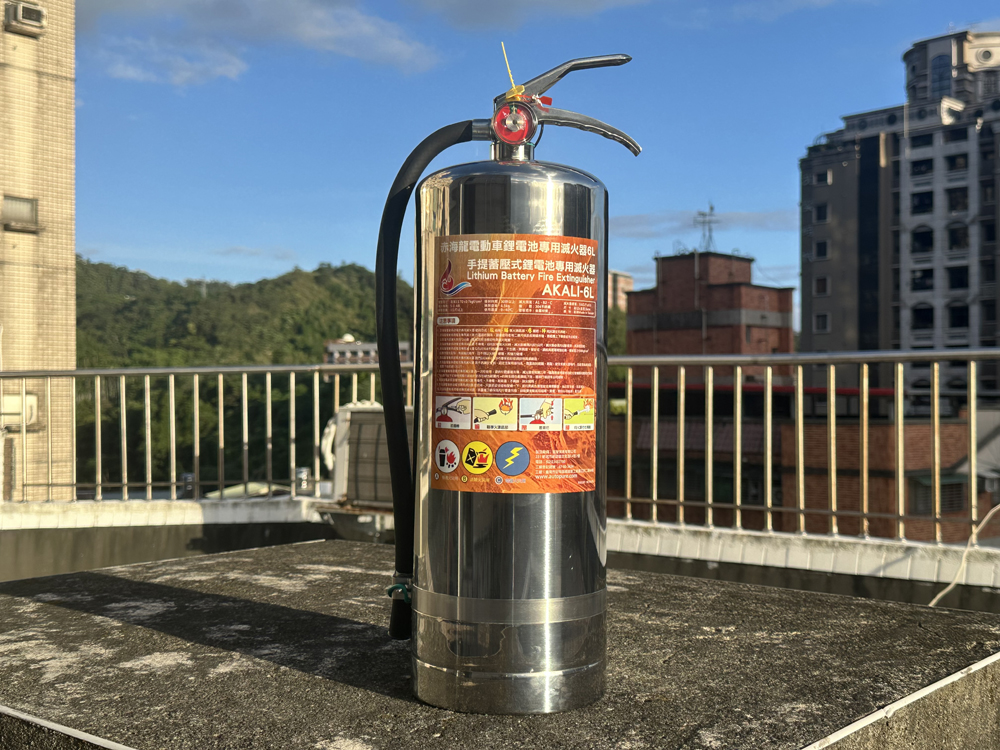

 Fire Extinguisher AKALI 6000 6L
Best For EV Lithium Battery Fire Extinguisher Stainless Steel Bottle
 AKALi6000

Lithium Battery, Solar Panel Fire Extinguisher AKALI 6000
Lithium Battery, Solar Panel Fire Extinguisher
Brand: AKALI
Model: AKALI6000
Main ingredient: S-AB-3
Content: 3L
Type: Gel fire extinguisher
Dimensions: 20.87” x 6.3” (bottle height 53cm x bottle diameter 16cm)
Total weight: 19.85 lbs. (9 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧30 seconds
Spray distance: ≧5 meters
Water pressure test: 28kgf/cm²
Using temperature:-20℃~40℃ suitable for winter use
Dielectric strength: ≧36KV/mm
Fire extinguishing efficiency: A4, B8, C, D, F/K
Shelf life: 3 years
Production date: marked on the bottom of the bottle

30P 9000gm
 Fire Extinguisher AKALI 9000 9L
Best For EV Lithium Battery Fire Extinguisher Stainless Steel Bottle
 AKALi9000

 Lithium Battery, Solar Panel Fire Extinguisher
Brand: AKALI
Model: AKALI9000
Main ingredient: S-AB-3
Content: 10L (2.5Gallon)
Type: Gel fire extinguisher
Dimensions: 20.87” x 7.10” (bottle height 53cm x bottle diameter 18cm)
Total weight: 30.87 lbs. (14 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧30 seconds
Spray distance: ≧5meters
Water pressure test: 28kgf/cm²
Using temperature: -20℃~40℃ suitable for winter use
Dielectric strength: ≧36KV/mm
Fire extinguishing efficiency: A6, B10, C, D, F/K
Shelf life: 3 years
Production date: marked on the bottom of the bottle

33P 10000gm
 Fire Extinguisher AKALI 10000 10L
Best For EV Lithium Battery Fire Extinguisher Stainless Steel Bottle
 AKALi10000

Lithium Battery, Solar Panel Fire Extinguisher AKALI 10000
Lithium Battery, Solar Panel Fire Extinguisher
Brand: AKALI
Model: AKALI10000
Main ingredient: S-AB-3
Content: 12L
Type: Gel fire extinguisher
Dimensions: 23.62” x 7.10” (bottle height 60cm x bottle diameter 18cm)
Total weight: 33.10 lbs. (15 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧30 seconds
Spray distance: ≧5 meters
Water pressure test: 28kgf/cm²
Using temperature: -20℃~40℃ suitable for winter use
Dielectric strength: ≧36KV/mm
Fire extinguishing efficiency: A8, B12, C, D, F/K
Shelf life: 3 years
Production date: marked on the bottom of the bottle

35P 12000gm
 Fire Extinguisher AKALI 12000 10L
Best For EV Lithium Battery Fire Extinguisher Stainless Steel Bottle
 AKALi12000

Lithium Battery, Solar Panel Fire Extinguisher AKALI 12000
Lithium Battery, Solar Panel Fire Extinguisher
Brand: AKALI
Model: AKALI12000
Main ingredient: S-AB-3
Content: 14L
Type: Gel fire extinguisher
Dimensions: 25.60” x 7.10” (bottle height 65cm x bottle diameter 18cm)
Total weight: 35.28 lbs. (16 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧30 seconds
Spray distance: ≧5 meters
Water pressure test: 28kgf/cm²
Using temperature: -20℃~40℃ suitable for winter use
Dielectric strength: ≧36KV/mm
Fire extinguishing efficiency: A10, B14, C, D, F/K
Shelf life: 3 years
Production date: marked on the bottom of the bottle
66-1 66-2
AKALI Lithium Battery Fire Extinguisher System
Vermiculite AKALI
700ml, 980ml, 2L, 3L, 6L, 9L, 20L and 40L
FK-5-1-12 Halon Fire Extinfuisher System
One Touch Fire Extinguisher Auto Filling - Refilling Machine
7308 Filling Machine

AKALI     AKAGE
fire extinguisher issuu   fire extinguisher-Water issuu
Lithium Battery Fire Extinguisher
 Solar Panel Fire Extinguisher
 FireExtinguisherTwHOME    FireExtinguisherPilotCaptainDriver
 Airplane aviation aircrafet  FireDetectionTubeHalon  CarFire  AkaHalonTW
 AkaHalon900 AKA Halon WaterHalon  WaterHalon3L  FireExtinguisherMRI
 autopure HOME

e-Mail Us      Payment     SkyPe: autopure     mexa@autopure.com

MEXA CO., LTD. (Since 1979)
AKA HALON CO., LTD.
Tel. +886-2-23657700 Fax.+886-2-23657702
Office: 7F., No. 14 Anmin Street, Xindian District, New Taipei City, Taiwan 231071

 Factory :No. 66 Kung Ming 2nd Road, Tsun Tou Liau Industry Area, Tainan 709, Taiwan Tel.09-1019-6666    FACTORY MAP
autopureHOME

www.autopure.com

abcdk fire extinguisher fire distinguisher fire ext fire fire extinguisher en fire extinguisher fire and fire extinguisher
kitchen fire extinguisher kitchen extinguisher fire equipment servicing extinguisher distinguisher fire extinguisher types

types of extinguishers kinds of fire extinguisher types of fires and extinguishers fire cylinder type fire distinguisher types

types of fire and fire extinguisher abc fire extinguisher abc extinguisher electrical fire extinguisher fire extinguisher for electrical fire
electrical extinguisher co2 fire extinguisher car fire extinguisher home fire extinguisher kidde fire extinguisher halon fire extinguisher

halon extinguisher fire extinguisher for house kidde extinguisher fire extinguisher in car water fire extinguisher water extinguisher

carbon dioxide fire extinguisher dry chemical fire extinguisher lowes fire extinguisher fireball extinguisher
carbon dioxide extinguisher abc dry chemical fire extinguisher fire extinguisher lowe's dry chemical extinguisher
dry chem extinguisher small fire extinguisher amerex fire extinguisher 5lb fire extinguisher best fire extinguisher for home
boat fire extinguisher fire extinguisher brackets 5 pound fire extinguisher fire extinguisher mounts

滅火器 滅火器口訣 滅火器種類 滅火器 價格 消防設備 消防器材 車用滅火器 滅火器系列產品
滅火器英文 Fire Extinguisher 滅火器Fire Ex. 滅火器哪裡買 家用滅火器 拉瞄壓掃
滅火器認可基準 海龍滅火器 赤海龍滅火器 Novec 1230

 海龍滅火器HALON海龍1211（HALON 1211 – CF2ClBr）海龍 1301（HALON 1301 – CF3Br）鹵化烷
HFC-23（FE-13）、HFC-236fa（FE-36）六氟丙烷 236fa 、HFC-227ea（FM-200、NAF S125）
七氟丙烷 227ea、HCFC-123（Halotron I）hcf-236 fe-36 新海龍 naf-236 高溫高效能環保氣體滅火器10型20型
hfc-236 海龍 環保氣體 滅火器 車用 廚房 家庭用 蓄壓式 5P 10P hfc-227 NAF滅火器 潔淨藥劑滅火器
二氧化碳滅火器 乾粉滅火器 強化液滅火器 中性強化液滅 火器 自動滅火設備 自動撒水滅火設備
金屬火災滅火器 消防設備師 消防設備士 消防安全 鋰電池火災 鋰電持滅火器 太陽能板滅火器
