Fire Extinguisher
Fire Extinguisher Halon Type
滅火器
FK-5-1-12 AKA Halon
Novec 1230
Fire Extinguisher Manufacturer
Stainless Steel 304L Bottled
Valid 20 years

Aka Halon 3000 3L
304L Stainless Steel Bottle

Aka Halon 2000 2L
304L Stainless Steel Bottle

Aka Halon 3P (980ml)
FK-5-1-12 Novec 1230
Refillable 304L Stainless Steel Bottled Total Weight 1.65 KGS
Size ：13.3” x 3.4” (H 33.80cm x Diameter 8.60cm)
Capacity：1.88 lbs. (0.85-1.00Kgs.)
Weight：3.36 lbs. (1.65-1.90Kgs.)

Aka Halon 1P (700ml)
FK-5-1-12 Novec 1230
Refillable 304L Stainless Steel Bottled Total Weight 1.30~1.50 Kgs.
Size ：11.8” x 3.0” (H 29.80cm x Diameter 7.60cm)
Capacity：1.54 lbs. (0.50-0.70Kgs.)
Weight：3.31 lbs. (1.30-1.50Kgs.)

Extinguisher Agent	Pressure	Fire Class	Capacity	Barrel	Weight	Discharge Time	Range Max.	Item #
FK-5-1-12	2.8Mpa	ABCDF	980ml	304L S.S.	1.80-1.90 Kgs	20 to 30 sec	>3M	AKA980(3P)
FK-5-1-12	2.8Mpa	ABCDF	700ml	304L S.S.	1.30-1.50 Kgs	15 to 25 sec	>3M	AKA700(1P)

1 AKA Halon Vs 10 CO2

AKA Halon2
Reflex 1230 Reflex 2 ReflexOFeu brand new unit Novec 1230 (Pressurized) 2Kg

AKA HALON FIRE DETECTION TUBE CNAS No. Gn202311472
O.D. 6mm (I.D. 4mm) PA12
WORKING PRESSURE 3.0MPa
BURST PRESSURE 13.08MPa

AKA Halon FK-5-1-12 is no corrosive, has good insulating property,
never damages electronic equipment, precision instruments, paper documents,
cultural relics and antiques, generates no residue after use, and may substitute
for sprinkler system, and dry chemical and foam extinguishing system
to protect the high-valued assets.

FK-5-1-12 extinguishing agent has excellent extinguishing characteristics and
it can put out Type A, B and C fire, is non-conductive and after ejection
it fast evaporates without any residue. Its extinguishing concentration is 3.5%
and 4.5% for Type A or Type B fire, which mostly approaches that of
halon extinguishing agent.

Ozone Depletion Potential Of Zero
FK-5-1-12 clean extinguishing agent has good environmental harmony, and
its Ozone Depletion Potential (ODP) is 0,
Global Warming Potential (GWP) <1.0, and
the Atmospheric life Time (ALT) is 0.014 year

From Class A to F AKA Halon works on all fire types

Different types of fires require different methods of extinguishment,
and using the wrong type of extinguisher on a fire can make the fire worse.

Novec 1230 FK-5-1-12 AKA Halon can be used on ALL fire classes,
keeping your home, business, and loved ones safe.

Results of toxicity test of FK-5-1-12

Test item	Test result
4-hour acute inhalation	Almost no toxicity (LC50＞100000ppm)
Carcinogenicity	No carcinogenicity
Acute oral	Low (LD50＞5000mg/kg)
Acute dermal	Low (LD50＞2000mg/kg)
Irritation to eyes	No irritation
Irritation to skin	No irritation
Allergy to skin	Non-skin sensitizer
Chromosome aberration	Negative

From the above it is clear that FK-5-1-12 extinguishing agent ensures the extinguishing efficiency,
meets the requirements on use safety, is almost harmless to human body,
and is much suitable for extinguishing and protection of the person-residing place.

Quality specification

Product	Purity/%	Water content/ ppm	Acidity (as HCl)/ ppm	Non-volatile residue(%)	Suspended matter or sediment
FK-5-1-12	≥99.7	≤10	≤3	≤0.01	NONE

　Forest fire

FK-5-1-12 Physical Properties：

Property	Unit Value
Molecular Mass	316.4
Boiling Point at1013bar	49.2℃
Freezing Point	-108 ℃
Liquid Density 25℃	1.6g/ml
Liquid Viscosity	0.524 cp
Critical Temperature	168.66℃
Critical Pressure	18.66 bar
Critical Density	639.1kg/m³
Heat Of Vaporization At Boiling Point	88 kj/kg
Solubility Of Water in FK-5-1-12 25℃	<0.001 wt%
Vapour Pressure 25℃	0.40（5.87）bar(psia)
Dielectric Strength	~ 110KV/mm

FK-5-1-12
Compare to the Environmental spec of FK-5-1-12 and Halon and part of the product

Item	FK-5-1-12	HFC-227ea	HFC-236fa	Halon1211	Halon1301
ODP	0	0	0	4	10
GWP	1	3800	9400	11300	6900
ALT	0.014	36.5	226	11	65
ODP: Ozone Depletion Potential GWP: Global Warming Potential ALT:Atmospheric Life Time (per Year)

Highly efficient and safe for people
The extinguishing concentration of FK-5-1-12 clean extinguishing agent is
much lower than NOAEL value, and has extremely low toxicity and thus high safety.
The extinguishing agent is registered in USE.P.A.T.S.C.A.

FK-5-1-12 Concentrations and Safety Margins Comparison：

Item	FK-5-1-12	HFC-227ea	CO2	Halon1301
Boiling Point ℃	49.2	-16.4	-78.4	-57.8
Use Concentration	4-6%	7.5-8.7%	30-75%	5%
NOAEL	10%	9%	＜5%	5%
Safety Margine	72-122%	5.9-20%	Lethal	0
NOAEL： Invisible Harm Concentration

Safety Margins= FK-5-1-12 -Use Concentration / Use Concentration X 100%

The chemical name of FK-5-1-12 is perfluoro (2-methyl-3-pentanone),
its CAS number is 756-13-8,
chemical code is FK-5-1-12,
molecular formula is C₆F₁₂O, and structural formula is:

Extinguisher Agent	Pressure	Fire Class	Capacity	Barrel	Weight	Discharge Time	Range Max.	Item #
FK-5-1-12	2.8Mpa	ABCDF	700ml	304L S.S.	0.40-0.70 Kgs	10 to 15 sec	>3M	AKA700
FK-5-1-12	2.8Mpa	ABCDF	980ml	304L S.S.	0.90-1.10 Kgs	15 to 25 sec	>3M	AKA980
FK-5-1-12	2.8Mpa	ABCDF	2000ml	304L S.S.	3.00-3.25 Kgs	30 to 40 sec	>3M	AKA2000
FK-5-1-12	2.8Mpa	ABCDF	3000ml	304L S.S.	4.50-4.90 Kgs	45 to 60 sec	>3M	AKA3000

ONLINE SALE
https://www.taiwanwhite.com/product_1489017.html

Fire Extinguisher AKA Halon 700 Best For The Car Auto Fire Extinguisher Stainless Steel Bottle (AKA700)

AKA HALON 700
AKA HALON 1P 700gm
Halon Fire Extinguisher Clean Agent Fire Extinguisher FK-5-1-12

Brand: AKAHALON
Model: AKA700
Main ingredient: FK-5-1-12
Content: 700gm
Type: Clean Agent fire extinguisher
Dimensions: 11.81” x 3” (bottle height 30cm x bottle diameter 7.60cm)
Total weight: 3.09 lbs. (1.20-1.40 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧10 seconds
Spray distance: ≧3 meters
Water pressure test: 28kgf/cm²
Using temperature: -50℃~40℃ suitable for winter use
Dielectric strength: ≧48KV/mm
Fire extinguishing efficiency: A1, B2, C, D, F/K
Shelf life: 20 years
Production date: marked on the bottom of the bottle

Fire Extinguisher AKA Halon 980 Best For The Car Auto Fire Extinguisher Stainless Steel Bottle (AKA980)

AKA HALON 900
AKA HALON 3P 900gm 1L
Halon Fire Extinguisher Clean Agent Fire Extinguisher FK-5-1-12

Brand: AKAHALON
Model: AKA1000
Main ingredient: FK-5-1-12
Content: 1L
Type: Clean Agent fire extinguisher
Dimensions: 13.3” x 3.4” (bottle height 33.80cm x bottle diameter 8.60cm)
Total weight: 3.36 lbs. (1.65-1.90 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧15 seconds
Spray distance: ≧3 meters
Water pressure test: 28kgf/cm²
Using temperature: -50℃~40℃ suitable for winter use
Dielectric strength: ≧48KV/mm
Fire extinguishing efficiency: A2, B4, C, D, F/K
Shelf life: 20 years
Production date: marked on the bottom of the bottle

Fire Extinguisher AKA Halon 2L For All Kinds Of Fire - Stainless Steel Bottle (AKA2000)

AKA HALON 2000
AKA HALON 5P 2000gm 2L
Halon Fire Extinguisher Clean Agent Fire Extinguisher FK-5-1-12

Brand: AKAHALON
Model: AKA2000
Main ingredient: FK-5-1-12
Content: 2L
Type: Clean Agent fire extinguisher
Dimensions: 16.93” x 5.91” (bottle height 43cm x bottle diameter 10.60cm)
Total weight: 5.21 lbs. (2.70-2.95 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧20 seconds
Spray distance: ≧3 meters
Water pressure test: 28kgf/cm²
Using temperature: -50℃~40℃ suitable for winter use
Dielectric strength: ≧48KV/mm
Fire extinguishing efficiency: A2, B4, C, D, F/K
Shelf life: 20 years
Production date: marked on the bottom of the bottle

Fire Extinguisher AKA Halon 3L For All Kinds Of Fire - Stainless Steel Bottle (AKA3000)

AKA HALON 3000
AKA HALON 10P 3000gm 3L
Halon Fire Extinguisher Clean Agent Fire Extinguisher FK-5-1-12

Brand: AKAHALON
Model: AKA3000
Main ingredient: FK-5-1-12
Content: 3L
Type: Clean Agent fire extinguisher
Dimensions: 17.32” x 5.12” (bottle height 44cm x bottle diameter 13cm)
Total weight: 10 lbs. (4.85 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧20 seconds
Spray distance: ≧3 meters
Water pressure test: 28kgf/cm²
Using temperature: -50℃~40℃ suitable for winter use
Dielectric strength: ≧48KV/mm
Fire extinguishing efficiency: A3, B6, C, D, F/K
Shelf life: 20 years
Production date: marked on the bottom of the bottle

Fire Extinguisher AKA Halon 4L For All Kinds Of Fire - Stainless Steel Bottle (AKA4000)

AKA HALON 4000
AKA HALON 15P 4000gm 4L
Halon Fire Extinguisher Clean Agent Fire Extinguisher FK-5-1-12

Brand: AKAHALON
Model: AKA4000
Main ingredient: FK-5-1-12
Content: 4L
Type: Clean Agent fire extinguisher
Dimensions: 17.32” x 5.12” (bottle height 44cm x bottle diameter 13cm)
Total weight: 10 lbs. (4.85 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧20 seconds
Spray distance: ≧3 meters
Water pressure test: 28kgf/cm²
Using temperature: -50℃~40℃ suitable for winter use
Dielectric strength: ≧48KV/mm
Fire extinguishing efficiency: A3, B6, C, D, F/K
Shelf life: 20 years
Production date: marked on the bottom of the bottle

Fire Extinguisher AKA Halon 6L For All Kinds Of Fire - Stainless Steel Bottle (AKA6000)

AKA HALON 6000
AKA HALON 20P 6000gm 6L
Halon Fire Extinguisher Clean Agent Fire Extinguisher FK-5-1-12

Brand: AKAHALON
Model: AKA6000
Main ingredient: FK-5-1-12
Content: 6L
Type: Clean Agent fire extinguisher
Dimensions: 20.87” x 6.3” (bottle height 53cm x bottle diameter 16cm)
Total weight: 19.85 lbs. (9 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧30 seconds
Spray distance: ≧5 meters
Water pressure test: 28kgf/cm²
Using temperature: -50℃~40℃ suitable for winter use
Dielectric strength: ≧48KV/mm
Fire extinguishing efficiency: A4, B8, C, D, F/K
Shelf life: 20years
Production date: marked on the bottom of the bottle

Fire Extinguisher AKA Halon 9L For All Kinds Of Fire - Stainless Steel Bottle (AKA9000)

AKA HALON 9000
AKA HALON 30P 9000gm 9L
Halon Fire Extinguisher Clean Agent Fire Extinguisher FK-5-1-12

Brand: AKAHALON
Model: AKA9000
Main ingredient: FK-5-1-12
Content: 10L (2.5Gallon)
Type: Clean Agent fire extinguisher
Dimensions: 20.87” x 7.10” (bottle height 53cm x bottle diameter 18cm)
Total weight: 30.87 lbs. (14 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧30 seconds
Spray distance: ≧5meters
Water pressure test: 28kgf/cm²
Using temperature: -50℃~40℃ suitable for winter use
Dielectric strength: ≧48KV/mm
Fire extinguishing efficiency: A6, B10, C, D, F/K
Shelf life: 20 years
Production date: marked on the bottom of the bottle

Fire Extinguisher AKA Halon 10L For All Kinds Of Fire - Stainless Steel Bottle (AKA10000)

AKA HALON 10000
AKA HALON 33P 10000gm 10L
Halon Fire Extinguisher Clean Agent Fire Extinguisher FK-5-1-12

Brand: AKAHALON
Model: AKA10000
Main ingredient: FK-5-1-12
Content: 12L
Type: Clean Agent fire extinguisher
Dimensions: 23.62” x 7.10” (bottle height 60cm x bottle diameter 18cm)
Total weight: 33.10 lbs. (15 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧30 seconds
Spray distance: ≧5 meters
Water pressure test: 28kgf/cm²
Using temperature: -50℃~40℃ suitable for winter use
Dielectric strength: ≧48KV/mm
Fire extinguishing efficiency: A8, B12, C, D, F/K
Shelf life: 20 years
Production date: marked on the bottom of the bottle

Fire Extinguisher AKA Halon 12L For All Kinds Of Fire - Stainless Steel Bottle (AKA12000)

AKA HALON 12000
AKA HALON 35P 12000gm 12L
Halon Fire Extinguisher Clean Agent Fire Extinguisher FK-5-1-12

Brand: AKAHALON
Model: AKA12000
Main ingredient: FK-5-1-12
Content: 14L
Type: Clean Agent fire extinguisher
Dimensions: 25.60” x 7.10” (bottle height 65cm x bottle diameter 18cm)
Total weight: 35.28 lbs. (16 kg)
Drive gas: Nitrogen 1.50Mpa
Spray time: ≧30 seconds
Spray distance: ≧5 meter

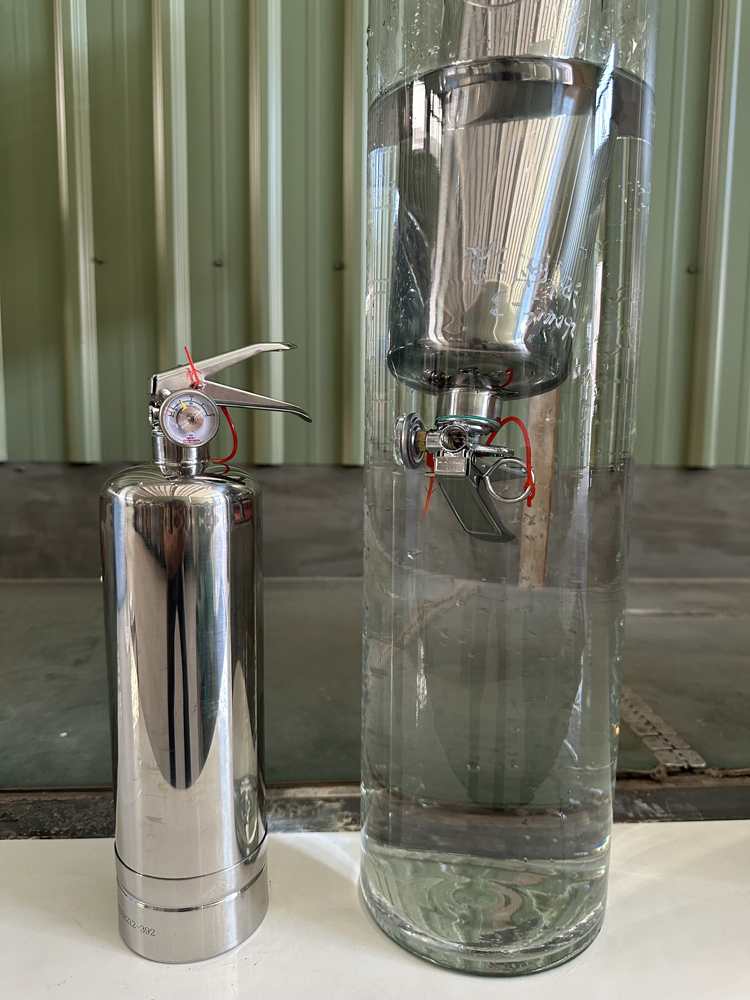

Water pressure test: 28kgf/cm²
Using temperature: -50℃~40℃ suitable for winter use
Dielectric strength: ≧48KV/mm
Fire extinguishing efficiency: A10, B14, C, D, F/K
Shelf life: 20 years
Production date: marked on the bottom of the bottle

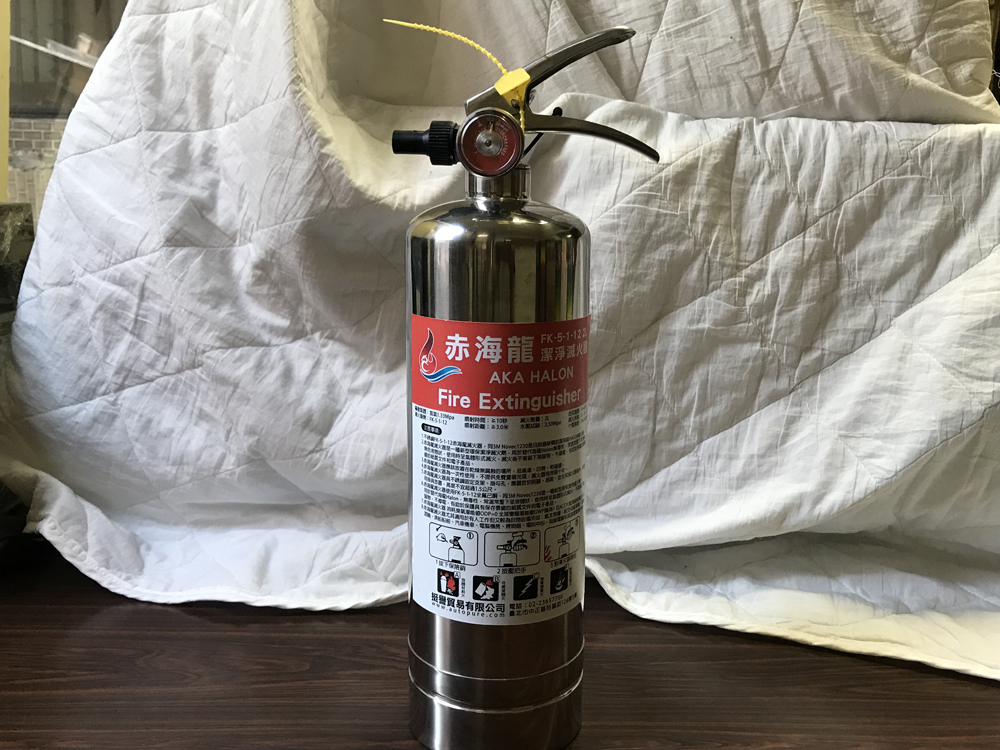

Halon Fire Extinguisher System - AKA Halon - FK-5-1-12
6L,12L, 40L, 70L, 90L, 120L, 150L and 180L

In addition to providing fire extinguisher products,
Also offers machines for the production of fire extinguishers,
one screen touch automatic filling of
fire extinguishing agents and pressurized gas

OEM Production Of Customer's Own Brand Products

FK-5-1-12 AKA Halon1230


fire extinguisher issuu     fire extinguisher water issuu
Lithium Battery Fire Extinguisher   Solar Panel Fire Extinguisher
Fire Detection Tube Halon   Car Fire   FireExtinguisherTwHOME   FireExtinguisherBoat
AkaHalon900   AKA Halon   WaterHalon Fire Extinguisher MRI   airplane aviation aircraft
AkaHalonTW    AkaTempleTW
autopureHOME

ONLINE SALES:
www.taiwanwhite.com
e-Mail Us    Payment     SkyPe: autopure     mexa@autopure.com
Mexa Co., Ltd.
Aka Halon Co., Ltd.
Tel. +886-2-23657700 Fax.+886-2-23657702
Office: 7F., No. 14 Anmin Street, Xindian District, New Taipei City, Taiwan 231071
Factory: No. 66 Kung Ming 2nd Road, Tsun Tou Liau Industry Area, Tainan, Taiwan Tel.0910-19-6666
挺譽貿易有限公司
赤海龍有限公司
總公司:新北市新店區安民街14號7樓
工廠:台南市安南區總頭寮工業區工明二路66號
挺譽統一編號: 05002668
赤海龍統一編號:00068449
工廠登記證號: 67-00-3434
FACTORY MAP

www.autopure.com

abcdk fire extinguisher fire distinguisher fire ext fire fire extinguisher en fire extinguisher fire and fire extinguisher
kitchen fire extinguisher kitchen extinguisher fire equipment servicing extinguisher distinguisher fire extinguisher types

types of extinguishers kinds of fire extinguisher types of fires and extinguishers fire cylinder type fire distinguisher types

types of fire and fire extinguisher abc fire extinguisher abc extinguisher electrical fire extinguisher fire extinguisher for electrical fire
electrical extinguisher co2 fire extinguisher car fire extinguisher home fire extinguisher kidde fire extinguisher halon fire extinguisher

halon extinguisher fire extinguisher for house kidde extinguisher fire extinguisher in car water fire extinguisher water extinguisher

carbon dioxide fire extinguisher dry chemical fire extinguisher lowes fire extinguisher fireball extinguisher
carbon dioxide extinguisher abc dry chemical fire extinguisher fire extinguisher lowe's dry chemical extinguisher
dry chem extinguisher small fire extinguisher amerex fire extinguisher 5lb fire extinguisher best fire extinguisher for home
boat fire extinguisher fire extinguisher brackets 5 pound fire extinguisher fire extinguisher mounts

滅火器滅火器口訣滅火器種類滅火器價格消防設備消防器材車用滅火器滅火器系列產品
滅火器英文 Fire Extinguisher 滅火器Fire Ex. 滅火器哪裡買家用滅火器拉瞄壓掃
滅火器認可基準海龍滅火器赤海龍滅火器 Novec 1230
