Fire Extinguisher Halon Type
滅火器
FK-5-1-12 Novec 1230 AKA Halon

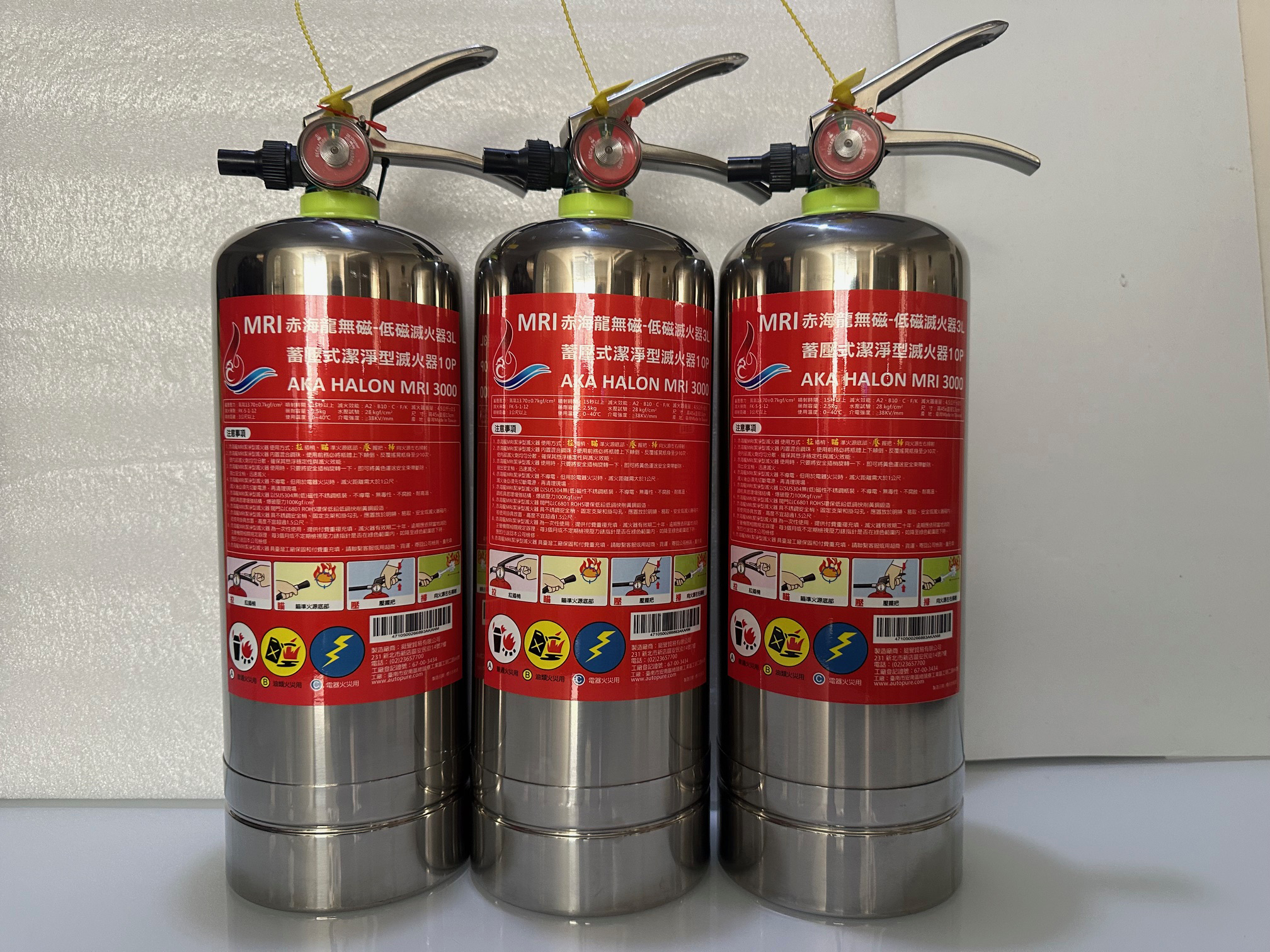

Fire Extinguisher MRI
Non-magnetic clean gas fire extinguisher
Nuclear magnetic resonance MRI fire extinguisher
Proton Therapy PT fire extinguisher
The main feature of AKA Halon non-magnetic fire extinguisher is non-magnetic,
The container material is made of non-magnetic stainless steel.
The use of fire extinguishing agent FK-5-1-12 is
an important substitute for halon fire extinguishing agent.
It is colorless, odorless, low-toxic, non-conductive, does not pollute the protected objects and
will not cause damage to property and precision facilities, nor
It will cause human and livestock hazards during use.
It can reliably extinguish Class A, B, C fires and Class E electrical fires
with a low extinguishing concentration, and it does not contain particles or oily residues after release.
No damage to the atmospheric ozone layer, ODP is 0
The global greenhouse effect potential GWP is 1
The retention time in the atmosphere is 5 days
which meets environmental protection requirements. AKA Halon Chihailong non-magnetic
fire extinguisher is specially designed for MRI... and other strong magnetic field environments.
The clean gas fire extinguishers developed have been widely used in large hospitals and
scientific research institutions at home and abroad.

AKA Halon 2000
Model: FK-5-1-12 2L 5P 7LB
Type: Portable Fire extinguisher
Extinguisher: Clean Agent Fire Extinguisher
Radiation Mechanism: Accumulator type
Dimensions: Dia. 110mm x H 390mm x W 110mm
Medicine weight (capacity): 2000gm
Total weight: 3.30 kg 7lb 5P
Accumulation Pressure: 13.71kgf/cm²
Gas volume for pressurization: Nitrogen 2.60Mpa
Container material: 304L Stainless steel
Spray time: More than 25 seconds
Spray distance: 10 feet or more
Safety valve actuation pressure: Less than 20kgf/cm²
Operating temperature range: 0 ℃ ~55 ℃
Electrical insulation performance: ≧40kV/mm
Scope of application: A, B, C, D and F/K fires
Non-toxic: LD50 >5,000mg/kg body weightValidity period: 20 years
Production date: Marked on the bottom of the S.S. bottle

AKA Halon 3000
Model: FK-5-1-12 3L 10P 10LB
Type: Portable Fire extinguisher
Extinguisher: Clean Agent Fire Extinguisher
Radiation Mechanism: Accumulator type
Dimensions: Dia. 130mm x H 440mm x W 130mm
Medicine weight (capacity): 3000gm
Total weight: 4.85 kg 10lb 10P
Accumulation Pressure: 13.71kgf/cm²
Gas volume for pressurization: Nitrogen 2.60Mpa
Container material: 304L Stainless steel
Spray time: More than 30 seconds
Spray distance: 10 feet or more
Safety valve actuation pressure: Less than 20kgf/cm²
Operating temperature range: 0 ℃ ~55 ℃
Electrical insulation performance: ≧40kV/mm
Scope of application: A, B, C, D and F/K fires
Non-toxic: LD50 >5,000mg/kg body weight
Validity period: 20 years
Production date: Marked on the bottom of the S.S. bottle

AKA Halon FK-5-1-12 is no corrosive, has good insulating property, never damages electronic equipment, precision instruments, paper documents, cultural relics and antiques, generates no residue after use, and may substitute for sprinkler system, and dry chemical and foam extinguishing system to protect the high-valued assets.

FK-5-1-12 extinguishing agent has excellent extinguishing characteristics and it can put out Type A, B and C fire, is non-conductive and after ejection it fast evaporates without any residue. Its extinguishing concentration is 3.5% and 4.5% for Type A or Type B fire, which mostly approaches that of halon extinguishing agent.

Ozone Depletion Potential Of Zero
FK-5-1-12 clean extinguishing agent has good environmental harmony, and its Ozone Depletion Potential (ODP) is 0, Global Warming Potential (GWP) <1.0, and the Atmospheric life Time (ALT) is 0.014 year

Results of toxicity test of FK-5-1-12

Test item	Test result
4-hour acute inhalation	Almost no toxicity (LC50＞100000ppm)
Carcinogenicity	No carcinogenicity
Acute oral	Low (LD50＞5000mg/kg)
Acute dermal	Low (LD50＞2000mg/kg)
Irritation to eyes	No irritation
Irritation to skin	No irritation
Allergy to skin	Non-skin sensitizer
Chromosome aberration	Negative

From the above it is clear that FK-5-1-12 extinguishing agent ensures the extinguishing efficiency, meets the requirements on use safety, is almost
harmless to human body, and is much suitable for extinguishing and protection
of the person-residing place.

Quality specification

Product

Purity/%

Water

content/

ppm

Acidity

(as HCl)/

ppm

Non-volatile

residue(%)

Suspended

matter
or sediment

FK-5-1-12

≥99.7

≤10

≤3

≤0.01

NONE

FK-5-1-12 Physical Properties：

Property	Unit Value
Molecular Mass	316.4
Boiling Point at1013bar	49.2℃
Freezing Point	-108 ℃
Liquid Density 25℃	1.6g/ml
Liquid Viscosity	0.524 cp
Critical Temperature	168.66℃
Critical Pressure	18.66 bar
Critical Density	639.1kg/m³
Heat Of Vaporization At Boiling Point	88 kj/kg
Solubility Of Water in FK-5-1-12 25℃	<0.001 wt%
Vapour Pressure 25℃	0.40（5.87）bar(psia)
Dielectric Strength	~ 110KV/mm

FK-5-1-12
Compare to the Environmental spec of FK-5-1-12 and Halon and part of the product：

Item	FK-5-1-12	HFC-227ea	HFC-236fa	Halon1211	Halon1301
ODP	0	0	0	4	10
GWP	1	3800	9400	11300	6900
ALT	0.014	36.5	226	11	65
ODP: Ozone Depletion Potential GWP: Global Warming Potential ALT:Atmospheric Life Time (per Year)

Highly efficient and safe for people
The extinguishing concentration of FK-5-1-12 clean extinguishing agent is
much lower than NOAEL value, and has extremely low toxicity and thus high safety.
The extinguishing agent is registered in USE.P.A.T.S.C.A.

abcdk fire extinguisher fire distinguisher fire ext fire fire extinguisher en fire extinguisher fire and fire extinguisher
kitchen fire extinguisher kitchen extinguisher fire equipment servicing extinguisher distinguisher fire extinguisher types

types of extinguishers kinds of fire extinguisher types of fires and extinguishers fire cylinder type fire distinguisher types

types of fire and fire extinguisher abc fire extinguisher abc extinguisher electrical fire extinguisher fire extinguisher for electrical fire
electrical extinguisher co2 fire extinguisher car fire extinguisher home fire extinguisher kidde fire extinguisher halon fire extinguisher

halon extinguisher fire extinguisher for house kidde extinguisher fire extinguisher in car water fire extinguisher water extinguisher

carbon dioxide fire extinguisher dry chemical fire extinguisher lowes fire extinguisher fireball extinguisher
carbon dioxide extinguisher abc dry chemical fire extinguisher fire extinguisher lowe's dry chemical extinguisher
dry chem extinguisher small fire extinguisher amerex fire extinguisher 5lb fire extinguisher best fire extinguisher for home
boat fire extinguisher fire extinguisher brackets 5 pound fire extinguisher fire extinguisher mounts

滅火器滅火器口訣滅火器種類滅火器價格消防設備消防器材車用滅火器滅火器系列產品
滅火器英文 Fire Extinguisher 滅火器Fire Ex. 滅火器哪裡買家用滅火器拉瞄壓掃
滅火器認可基準海龍滅火器赤海龍滅火器 Novec 1230

Item	FK-5-1-12	HFC-227ea	CO2	Halon1301
Boiling Point ℃	49.2	-16.4	-78.4	-57.8
Use Concentration	4-6%	7.5-8.7%	30-75%	5%
NOAEL	10%	9%	＜5%	5%
Safety Margine	72-122%	5.9-20%	Lethal	0
