ＴＨＥ　ＢＥＳＴ　FIRE EXTINGUISHER HALON TYPE
滅火
AKA HALON
Super Car Halon Gas Automatic Air Extinguisher
No Need To Replace Security Check Valid For 20 Years

Centennial Plaque Extinguisher

Auto Fire Extinguisher – AKA Halon
The car burned, the fire extinguisher was not available on the car, and
the firetruck failed to arrive in time. Seeing that the car burned out.
The "Red Sea Dragon" automatic fire extinguishing system is installed on
the car in advance.
When a fire occurs between the pipes of the fire extinguishing system,
Due to the increase in the temperature of the fire point, the pipeline at
that location ruptured in high temperature, and Halon gas fire extinguishing
agent was sprayed out to extinguish the fire.
AKA Halon FK-5-1-12 is a new type of environmentally friendly, efficient and
clean, fire extinguishing agent, used to replace Halon, AKA Halon FK-5-1-12
does not damage electronic equipment, is non-corrosive, non-conductive,
clean and has no residue.
After use, there will be no foam or powder fire extinguishing agent, and
the miserable state after use can quickly resume work and continue to
implement current affairs, that is, if the car can still start driving after
AKA Halon puts out the fire, you can leave the scene and go to the garage.

ODP is 0
GWP is 1
ALT (0.014 years) Atmospheric Lastance Time is 5 days

Harmless to humans, animals and animals And it is liquid under normal
temperature and pressure, which will not burn or explode, and it is very
convenient for transportation and storage.
AKA Halon FK-5-1-12 can be used in computer rooms, communication
rooms, engines, ships, cruise ships, ships, aerospace, aircraft,
supercars, automobiles, school buses, buses, tour buses, trucks,
transportation vehicles, museums , file room,paint room,
AC power control room, engine turbine room and pump room...etc.

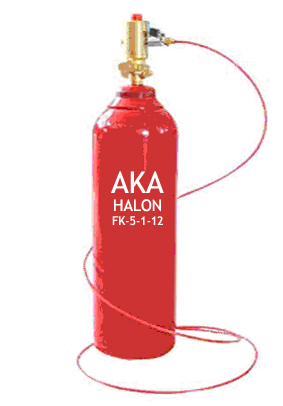

AKA Halon fire detection tube temperature-sensing automatic fire extinguishing device is a simple, reliable, and timely independent fire detection and fire extinguishing device developed in Taiwan in recent years, referred to as "fire detection tube fire extinguishing device". This type of fire extinguishing device
uses a flexible and bendable fire detection tube as a fire detection and alarm component, and at the same time, this fire detection tube can also be used as a pipeline for the delivery and discharge of the fire extinguishing agent.
The fire detection tube can be conveniently arranged near every potential fire source.
Once a fire occurs, the fire detection tube is heated and ruptured, and the fire extinguishing agent is immediately released to extinguish the fire. It can make up
for the deficiencies of existing fixed gas automatic fire extinguishing devices,
and is used for fire protection in places where metal pipe networks, nozzles or
fire alarm systems cannot be installed, especially in small spaces and special environments.

Composition and principle:
1. Direct fire detection tube fire extinguishing device It is mainly composed
of fire extinguishing agent storage containers, container valves, fire detection pipes, pressure gauges, one-way valves, It is composed of pressure switch, alarm bell (optional accessory) and special joint for fire detection pipe.
The direct type is the fire detection tube in the fire detection system, which is used as a fire detection component and as a delivery component of the extinguishing agent. That is to say, once the fire detection tube detects a fire, it will directly release the extinguishing agent to extinguish the fire. Direct fire detection tube fire extinguishing device, mainly used for equipment with a certain enclosure, Such as communication cabinets, power distribution boxes, computer rooms, etc. for fire fighting.

2. Indirect fire detection tube fire extinguishing device Mainly consists of fire extinguishing agent storage container, container valve, fire detection tube, release tube, nozzle, Pressure gauge, one-way valve, pressure switch, alarm bell (optional accessory) and It is composed of special joints for fire detection pipes. The indirect type is the fire detection tube in the fire extinguishing system, which is only used as a fire detection component. When the fire detection tube detects a fire, it will activate the container valve on the fire extinguishing agent storage container, The fire extinguishing agent is delivered by a special fire extinguishing agent release pipe to extinguish the fire. The indirect fire detection tube fire extinguishing device is mainly used to perform local The fire extinguishing method can also be used to extinguish the fire by flooding the entire room.

Device features: As a simple, low-cost and reliable independent automatic fire extinguishing system, It does not need any power supply, no special smoke and temperature detection fire detectors, no complicated electronic equipment and pipelines, and uses its own pressure storage, relying on a charged fire detection tube and a set of fire detection bottle sets to quickly , Accurately and effectively detect and extinguish the fire source, integrate the alarm and extinguishment, and extinguish the fire in the initial stage. It can greatly reduce the cost of fire extinguishing equipment, reduce the amount of fire extinguishing agent, reduce the cost of each fire extinguishing, and reduce the damage to personnel. By adopting this device, the original protection of a larger enclosed space can be changed to directly protect various valuable equipment in a smaller enclosed space. Achieve close-range, point-to-point (fire extinguishing agent spray point and fire point) rapid fire extinguishing.

Applicable places:
1. The microwave computer room, electronic computer room, transformer and distribution room in the radio and television transmission tower and Uninterruptible power supply room.
2. Program control exchange room, control room and signaling transfer point room of communication system.
3. The control room, electronic equipment room, computer room, relay room, cabin of the power plant, Engine room, engine room, ammunition compartment, ship, tank, train, bus, truck, Tour buses, other transportation vehicles carrying passengers, personnel, and passengers; Substation and distribution room; cable crossing, dense and intermediate joints, etc.
4. Substation and distribution cabinets, elevator control cabinets, wire and cable troughs or bridges with trough boxes.
5. Assembling room with staff, other special places and airtight enclosure or Important cabinet equipment.

AKA Halon FK-5-1-12 is harmless to humans, animals and things

AKA Halon FK-5-1-12 has low toxicity and high fire extinguishing efficiency.
Compared with CO2 and other clean fire extinguishing agents, AKA Halon FK-5-1-12 has an
effective fire extinguishing concentration of 4.5-5.8% or even more than Hailong Halon.
The safety margin is 72-120%.
These features make AKA Halon FK-5-1-12 can be used in computer rooms, communication rooms,
engine engines, ships, cruise ships, ships, aerospace, aircraft, automobiles, school buses, trucks,
transportation vehicles, museums, archives, paint room, AC power control room, engine and pump room...etc.
AKA Halon FK-5-1-12 is the best choice for yachts and high-speed ships engine room, engine room, communication, combat situation room... etc. AKA Halon FK-5-1-12 can quickly vaporize after use,
and is non-corrosive and non-conductive, so it has no damage to precision electronic components,
radar, navigation and other equipment and
AKA Halon FK-5-1-12 will not have the horrible state of foam or powder fire extinguishing agent after use.
AKA Halon FK-5-1-12 has no residue after use, which means it will not affect the continuous
operation of the current work.

AKA Halon FK-5-1-12 stays in the atmosphere for a short time of about 5 days
and has an excellent environmental coefficient.

Product	FK-5-1-12	HFC-227ea	HFC-23fa
ODP	0	0	0
GWP	1	3800	14800
ALT (Atmospheric Lastance Time(per Year)	0.014 About 5 days	36.5	270

Large Safety Margin
Since AKA Halon FK-5-1-12 provides a larger safety margin of 72-122% than Halon fire extinguishing agent, when used on ships and aircraft, its effective fire extinguishing concentration of 4.5~5.8% will not exceed the safety level limit.

Extinguishing agent	FK-5-1-12	HFC-227ea	Inert gas	CO2
Use concentration	4.5-5.8%	7.5-8.7%	34.2-40.6%	30-75%
NOAEL	10%	9%	43%	<5%
Safety margin	72-122%	5.9-20%	6-26%	Design concentration is equivalent

Since the use concentration of AKA Halon FK-5-1-12 is much lower than the NOAEL concentration,
the safety margin of AKA Halon FK-5-1-12 is the largest compared to other
Halon fire extinguishing agents.
If AKA Halon FK-5-1-12 is used to extinguish a fire in a confined space,
it will not put humans, animals and animals in danger.
The engine turbine room, electronic computing center, or other cabins and engine rooms are
complex in structure, so it is difficult to calculate the remaining space volume, and the
calculation data of these used spaces is very important for calculating the effective
fire extinguishing concentration of the fire extinguishing agent.
Because the design concentration of the fire extinguishing agent is calculated based on
the room space, there are pipes, lines, machines and other obstacles in a very important room,
so the concentration of the fire extinguishing agent will easily exceed its NOAEL value when used.

Since AKA Halon FK-5-1-12 is liquid at room temperature and the storage pressure is low,
AKA Halon even in gas cylinders It can be done without being offline.
The liquid AKA Halon FK-5-1-12 can efficiently use space and store the same amount of
Halon fire extinguishing agent.
AKA Halon FK-5-1-12 uses the same size of gas cylinder as the Hailong fire extinguishing agent.
AKA Haion FK-5-1-12 is a safe fire extinguishing agent that can be transported by air and
does not require special safe transport requirements.

AKA Halon FK-5-1-12 fire extinguishing agent is a very clean fire extinguishing material,
which is often used to protect very expensive properties, such as: collections of books,
documents, artworks, library cultural relics, showcases, archives, computers or
other exquisite electronic originals.
AKA FK-5-1-12 was originally designed for people's safety, property protection,
fire fighting and environmental considerations.
Due to the key nature of AKA FK-5-1-12, people redefine the definition of
"sustainable and rapid recovery of previous work" for clean fire extinguishing agents:
ODP is 0
GWP is 1
ALT (0.014 years) Atmospheric Lastance Time is 5 days

It is harmless to humans, animals and animals, as a clean fire extinguishing agent,
AKA Halon FK-5-1-12 for protection.
There are many advantages to precious property.
According to the definition of clean fire extinguishing agent, there will be no residue after
use and it will not conduct electricity. After use, clean fire extinguishing agent will not
destroy precision parts or affect the operation of sensitive electronic components.
Water sprinklers and spray systems can effectively extinguish structural fires, but water
can cause damage to fragile and irreplaceable things.
Although the dry powder fire extinguishing system avoids the above-mentioned problems,
it has a large amount of solid residue, which is difficult to clean, and can cause damage to
precision equipment, hard disk drives, and electronic media.
Because the ODP of AKA Halon FK-5-1-12 is 0, the lower GWP is 1, and the nature of the
shorter atmospheric retention time, AKA Halon FK-5-1-12 is the first alternative that can
completely replace the Halon fire extinguishing agent. It can provide feasible, long-term
and sustainable protection for some places with special dangers.
1. AKA Halon fire extinguishing agent FK-5-1-12 is the guardian of the earth's environment.
Ozone depletion potential ODP = 0
The global warming potential GWP is only 1
ALT (0.014 years) Atmospheric Lastance Time is 5 days
It is currently the most environmentally friendly fire extinguishing agent in the world.
It is 1/3800 of heptafluoropropane, and the ALT stay in the atmosphere is 5 days.
It is a veritable green fire extinguishing agent.

2. AKA Halon fire extinguishing agent FK-5-1-12 has high fire extinguishing efficiency,
and the fire extinguishing concentration is 4.5% for class B fire.
The safety is good. It can be seen that the concentration of harmful effects NOAEL is 10%,
which is greater than 72~122% of its fire-extinguishing concentration.
Advantages such as safe use;

3. AKA Halon fire extinguisher is also the protector of various electronic and
electrical equipment.
FK-5-1-12 fire extinguishing agent has Excellent electrical insulation performance,
passed the 110KV test. FK-5-1-12 fire extinguishing agent not only ensure fire
extinguishing efficiency, but also meet the requirements of safety in use and
environmental protection.
AKA Halon ernments around the world and the international fire protection industry.

In terms of safety, AKA Halon toxicity safety margin is as high as 67~150%,
which means that it is safer to the human body during use.
It has been approved by the US Environmental Protection Agency and
can be used in situations where people are present.
AKA Halon is currently the most perfect substitute for Halon.
Its excellent fire extinguishing performance
AKA Halon and environmental friendliness determine its wide application prospects
in many important places, such as: manned communication room, computer and
electrical control room, chemical dangerous goods Cargo compartments, vehicle
cockpits and engine compartments, power cabins of aircraft and ships, etc.

AKA Halon FK-5-1-12 is a colorless, transparent and insulating liquid at room temperature.
It is an environmentally friendly and clean new fire extinguishing agent.
AKA Halon FK-5-1-12 has been listed in
ISO14520-2006 "Physical Characteristics and System Design of Gas Fire Extinguishing System",
In standard documents such as NFPA2001 "Code for Design of Clean Gas Fire Extinguishing System",
the application design of this product has been specified.
AKA Halon fire extinguishing agent is a new type of Halon fire extinguishing agent substitute.
The fire extinguishing agent has excellent environmental performance and low toxicity characteristics.
It has comprehensive performances such as high fire fighting efficiency, environmental
protection and cleanness, safe use, and no damage to electronic precision equipment.
AKA Halon FK-5-1-12 clean fire extinguishing agent has good environmental protection
characteristics and has no destructive effect on the ozone layer.

The ODP is 0,
The global warming coefficient GWP is 1, and
The survival life in the Atmospheric Lastance Time (ALT) is 0.014 years.

It is better than the widely used alternative Halon fire extinguishing agent
(heptafluoropropane HFC-227ea, HFC-236fa) and so on.
The ODP value of these fluoroalkane fire extinguishing agents is 0,
but their GWP value is relatively large.
It is 3800 times that of FK-5-1-12 which has a negative effect on global warming
and climate change.
The environmental performance of AKA Halon FK-5-1-12 fire extinguishing agent
meets the requirements of European and American environmental protection regulations.
AKA Halon FK-5-1-12 fire extinguishing agent has excellent fire extinguishing performance,
and its fire extinguishing concentration:
The extinguishing concentration of Class A fire is 3.5%,
The fire extinguishing concentration of Class B fire is 4.5
which is the closest to the performance of Hailong fire extinguishing agent,
and is much smaller than other fluoroalkane sealong alternatives
(5 for Halon 1301; 7.5-8.7 for HFC-227ea; 30-75 for CO2).
AKA Halon FK-5-1-12 fire extinguishing agent can extinguish fires of Class A, B and C.
It is non-conductive and vaporizes quickly after spraying, leaving no residue.

Type：AKA HALON 3LT
External material：Stainless steel explosion-proof high pressure seamless steel cylinder
Internal padding：FK-5-1-12、Novec1230
Start conditions: electromagnetic start/mechanical emergency/manual start Response time: <8 seconds
Extinguishing type: Class A, B, C fire

Physical quantity	Numerical value
FK-5-1-12、Novec1230	3L
Release pattern	Direct
Work pressure	2.500Mpa
Operating temperature	0℃ -49℃
Extinguishing concentration	4.50 %
Detecting tube length	12M
Fluid dynamic viscosity (0℃ /25℃), centistokes (torks)	0.41（0.56）
Critical temperature，℃	168.66
Critical pressure Bar	18.66
Critical volume cc/mole	494.5
Critical density kg/m³	639.1
The solubility weight ratio of water at 25℃ in FK-5-1-12	<0.001
25℃ steam pressure 25℃ bar(psia)	0.40（5.87）
Insulation strength 25℃ N2=1 kv	2.3at

AKA Halon FK-5-1-12 is environmentally friendly:

performance	Inert gas	FK-5-1-12	HFC-227ea	HFC-236fa	海龍1211	海龍1301
ODP	0	0	0	0	4	12
GWP	0	1	3800	9400	11300	6900
ALT	0	0.014	36.5	226	11	65
ODP: ozone depletion potential GWP: Global Warming Potential ALT:Atmospheric Lastance Time (per /Year)

The safety of AKA Halon FK-5-1-12 to human body:

Performance	FK-5-1-12	HFC-227ea	CO2	Halon1301
Boiling Point ℃	49.2	-16.4	-78.4	-57.8
Extinguishing concentration	4-6%	7.5-8.7%	30-75%	5%
NOAEL	10%	9%	＜5%	5%
Safety Value	67-100%	3-20%	Designed concentration higher than NOAEL, easy to lethal	Non
NOAEL：Non-Observed Adverse Effect Level

autopureHOME
www.autopure.com

海龍滅火器HALON海龍1211（HALON 1211 – CF₂ClBr）海龍 1301（HALON 1301 – CF₃Br）鹵化烷
HFC-23（FE-13）、HFC-236fa（FE-36）六氟丙烷 236fa 、HFC-227ea（FM-200、NAF S125）
七氟丙烷 227ea、HCFC-123（Halotron I）hcf-236 fe-36 新海龍 naf-236 高溫高效能環保氣體滅火器10型20型
hfc-236 海龍環保氣體滅火器車用廚房家庭用蓄壓式 5P 10P hfc-227 NAF滅火器潔淨藥劑滅火器
二氧化碳滅火器乾粉滅火器強化液滅火器中性強化液滅火器自動滅火設備自動撒水滅火設備
金屬火災滅火器消防設備師消防設備士消防安全
